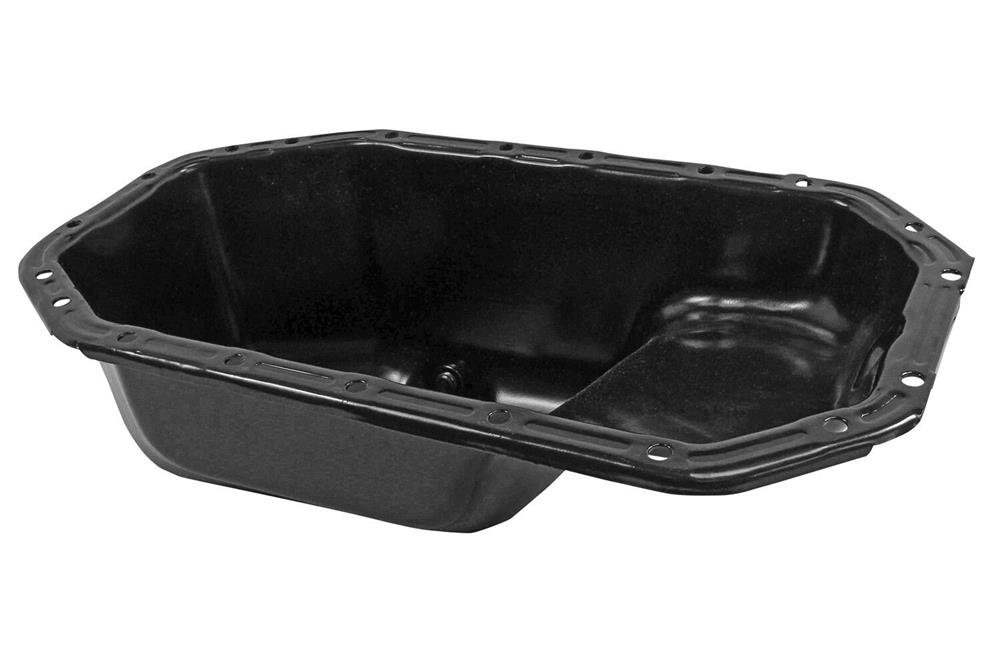

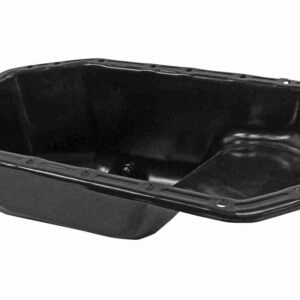

Oil Sumps
Specifications
| Length | 420mm |
|---|---|
| Width | 230mm |
| Height | 160mm |
| Weight | 2.364kg |
| Section | Lower Section |
| Supplementary Article/Supplementary Info | with oil drain plug |
| Surface | Powder coated |
| Oil sump Material | Sheet Steel |
| Supplementary Article/Info 2 | with seal ring, without bore for oil level sensor, without oil sump gasket |
| See accessories list for additionally required parts | |
| Default settings of the vehiclemust be considered | |
| Observe system fill quantity | |
| SKODA OE Numbers | 036103601AC, 03C103601AK, 36103601AC, 3C103601AK |
| VAG OE Numbers | 036103601AC, 036103602D, 036103602D, 36103601AC |
| VW OE Numbers | 036103601AC, 03C103601AK, 03C103601AK, 36103601AC, 3C103601AK |
