Service Kits
VW Service Kit

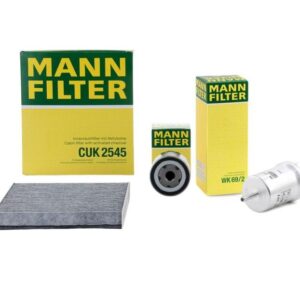

Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Mann-filter Cabin Air Filter CUK2545 | MANN-FILTER | 1 |
| Mann-filter Oil Filter W712/52 | MANN-FILTER | 1 |
| Mann Fuel Filter WK69/2 | MANN-FILTER | 1 |
Specifications

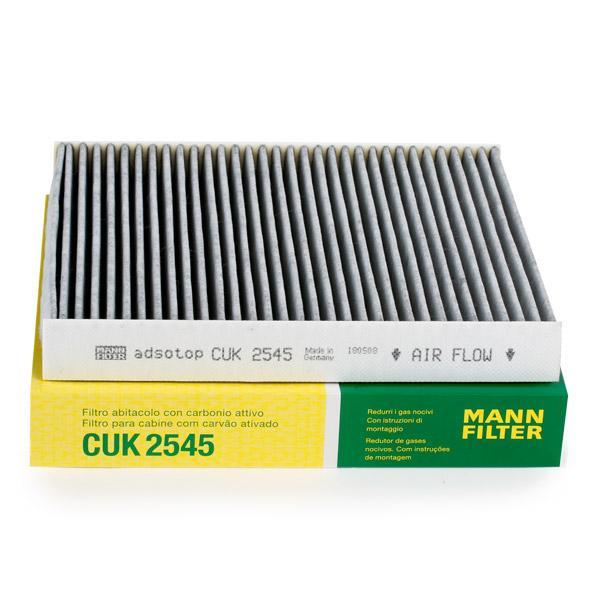

Mann-filter Cabin Air Filter CUK2545
| Length | 246mm |
|---|---|
| Width | 216mm |
| Height | 32mm |
| Filter Type | Activated Carbon Filter |
| MERCEDES-BENZ OE Numbers | 4638300018, A4638300018 |
| VAG OE Numbers | 6Q0819653, 6Q0819653B, 6Q0820367, JZW819653A |

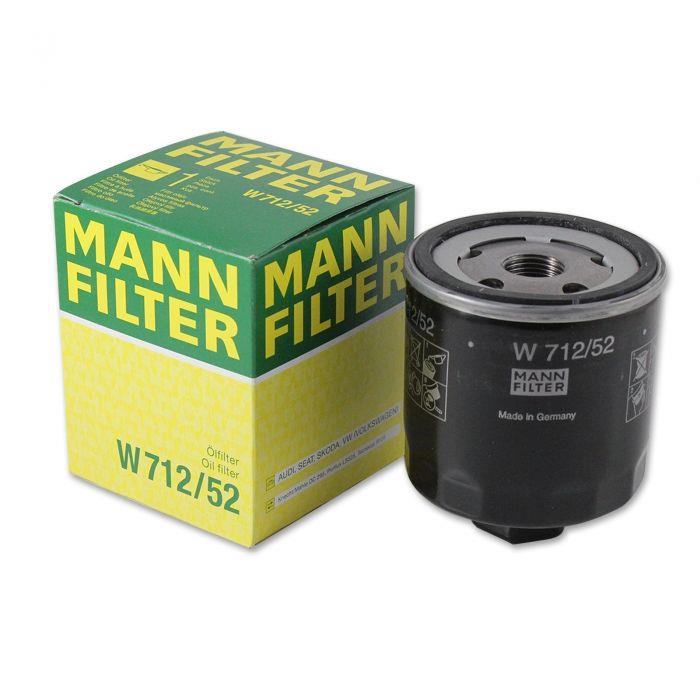

Mann-filter Oil Filter W712/52
| Height | 92mm |
|---|---|
| Thread size | 3/4-16 UNF |
| Outer diameter | 76mm |
| Filter Type | Spin-on Filter |
| Supplementary Article/Info 2 | with one anti-return valve |
| Outer diameter 2 | 71mm |
| Inner Diameter 2 | 62mm |
| Opening Pressure Bypass Valve | 2.5bar |
| VAG OE Numbers | 030115561AA, 030115561AB, 030115561AD, 030115561AH, 030115561AN, 030115561AP, 030115561AQ, 030115561AR, 030115561F, 030115561H, 030115561K, 030115561L, 030115561P, 030115561T |

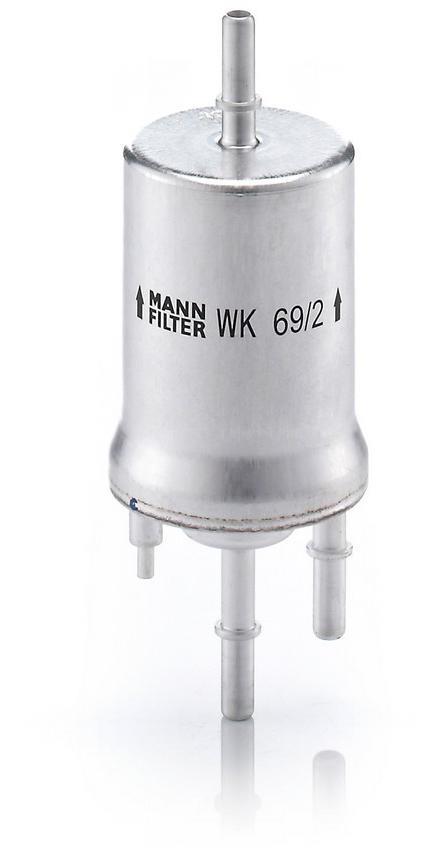

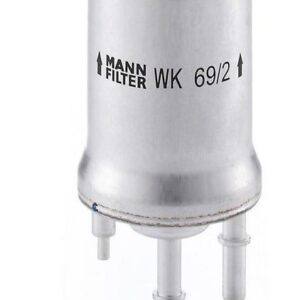

Mann Fuel Filter WK69/2
| Height | 164mm |
|---|---|
| 4bar | |
| Outer diameter | 55mm |
| Filter Type | In-Line Filter, with ejector |
| Inlet Ø | 8mm |
| Outlet Ø | 8mm |
| Outer diameter 1 | 61mm |
| VAG OE Numbers | 6Q0201051A, 6Q0201051C, 6Q0201051J |
