Service Kits

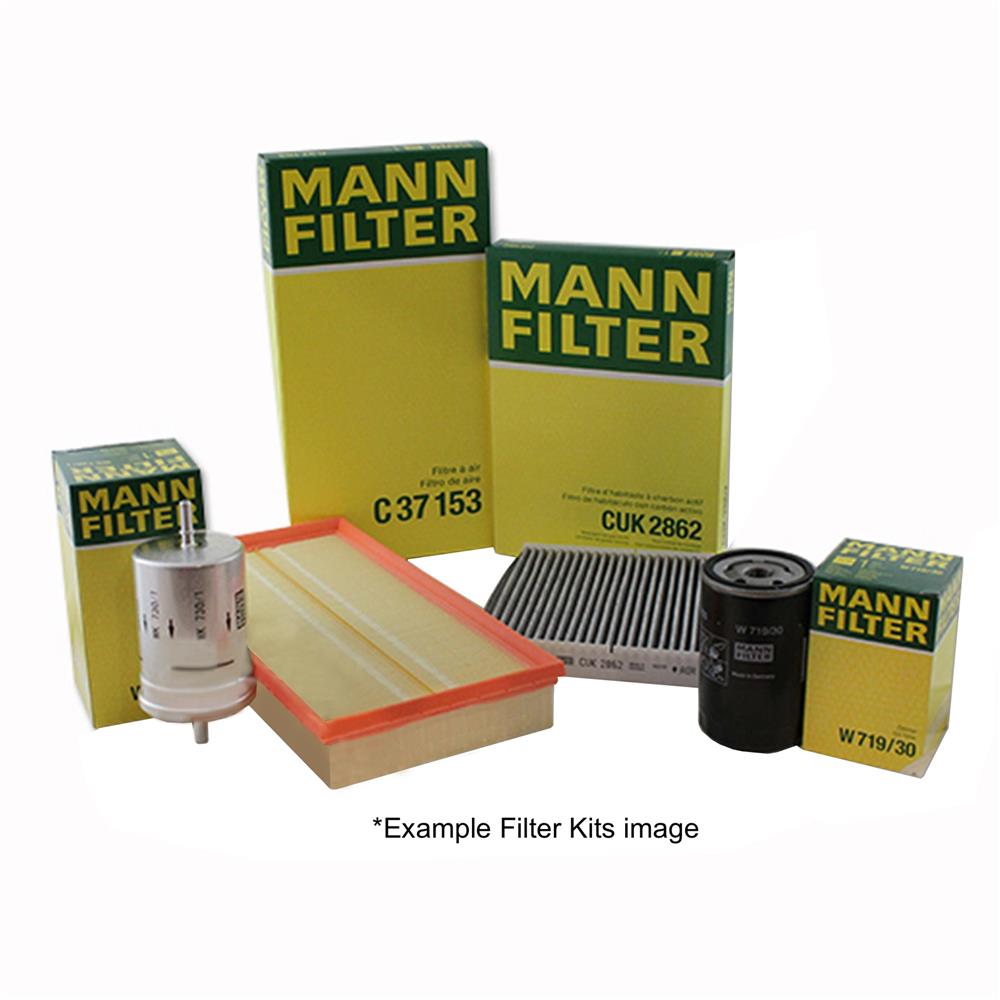

Audi VW Skoda Service Kit
Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Mann-filter Air Filter C14130 | MANN-FILTER | 1 |
| Mann Fuel Filter WK69/2 | MANN-FILTER | 1 |
| Mann Filter Cabin Air Filter CUK2939/1 | MANN-FILTER | 1 |
| Mann-filter Oil Filter W719/30 | MANN-FILTER | 1 |
Specifications
Mann-filter Air Filter C14130
| Height | 220mm |
|---|---|
| Inner Diameter | 69mm |
| Outer diameter | 136mm |
| Filter Type | Filter Insert |
| VAG OE Numbers | 1F0129620, 1FO129620, 1TD129620A, 3C0129620 |

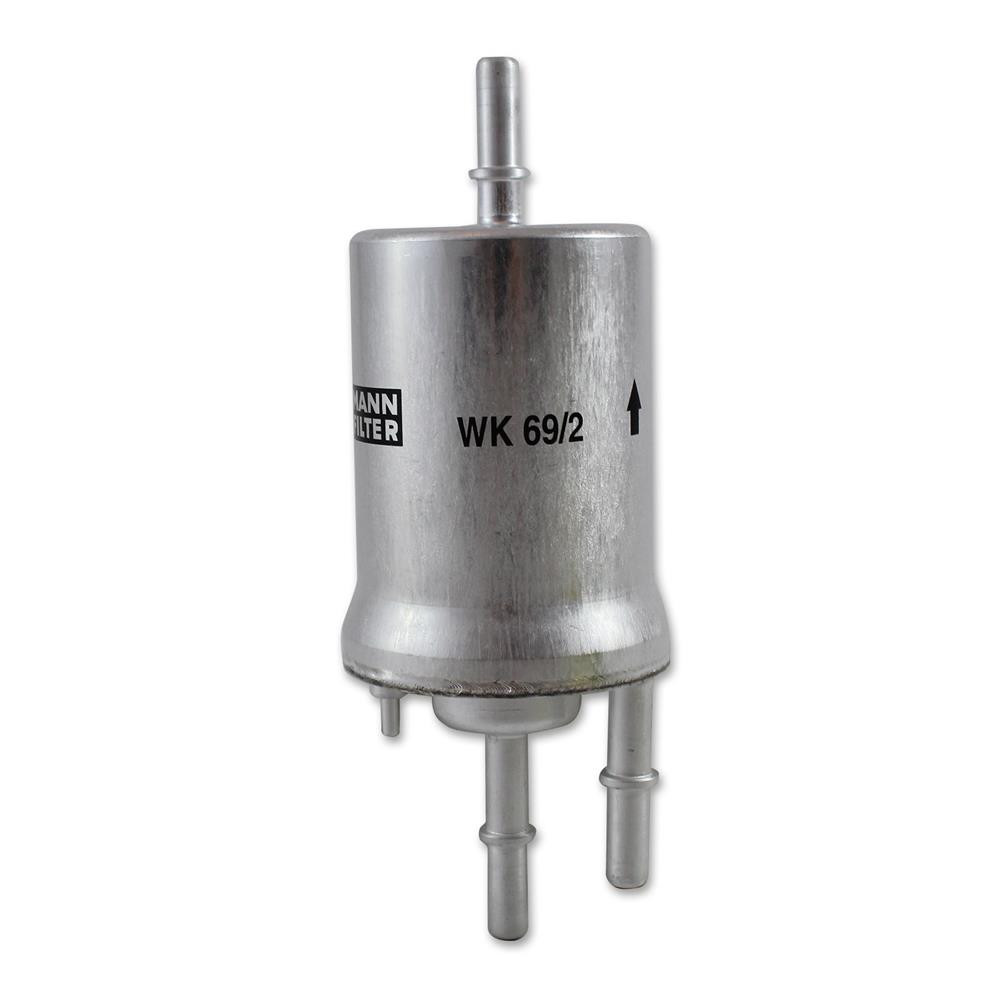

Mann Fuel Filter WK69/2
| Height | 164mm |
|---|---|
| 4bar | |
| Outer diameter | 55mm |
| Filter Type | In-Line Filter, with ejector |
| Inlet Ø | 8mm |
| Outlet Ø | 8mm |
| Outer diameter 1 | 61mm |
| VAG OE Numbers | 6Q0201051A, 6Q0201051C, 6Q0201051J |

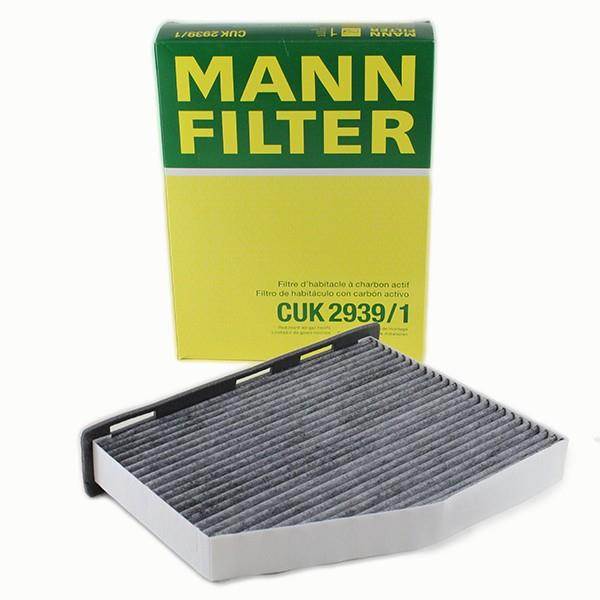

Mann Filter Cabin Air Filter CUK2939/1
| Length | 288mm |
|---|---|
| Width | 215mm |
| Height | 34mm |
| Left-/right-hand drive vehicles | for right-hand drive vehicles |
| Filter Type | Activated Carbon Filter |
| VAG OE Numbers | 1K2819653, 1K2819653A, 1K2819653B |

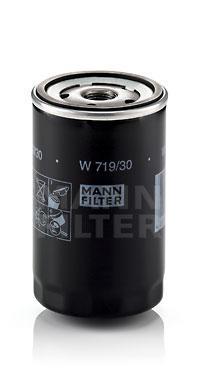

Mann-filter Oil Filter W719/30
| Height | 123mm |
|---|---|
| Thread size | 3/4-16 UNF |
| Outer diameter | 76mm |
| Filter Type | Spin-on Filter |
| Supplementary Article/Info 2 | with one anti-return valve |
| Outer diameter 2 | 71mm |
| Inner Diameter 2 | 62mm |
| Opening Pressure Bypass Valve | 2.5bar |
| Article number of the recommended special tool | LS 7 |
| VAG OE Numbers | 034115561A, 06A115561, 06A115561B, 06A115561E, 078115561K, 1JM115561BZ |
