Service Kits
Audi Service Kit

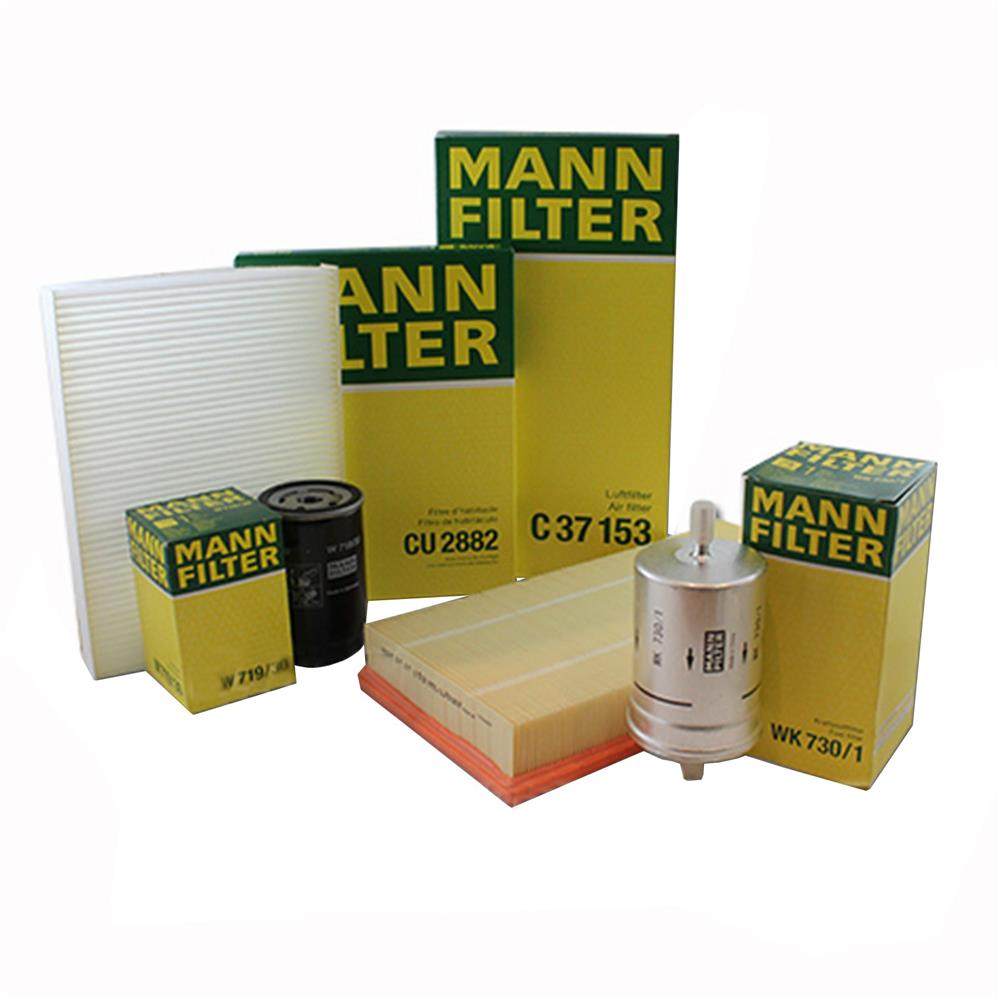

Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Mann Air Filter C37153 | MANN-FILTER | 1 |
| Mann-filter Cabin Air Filter CU2882 | MANN-FILTER | 1 |
| Mann-filter Fuel filter WK730/1 | MANN-FILTER | 1 |
| Mann-filter Oil Filter W719/30 | MANN-FILTER | 1 |
Specifications

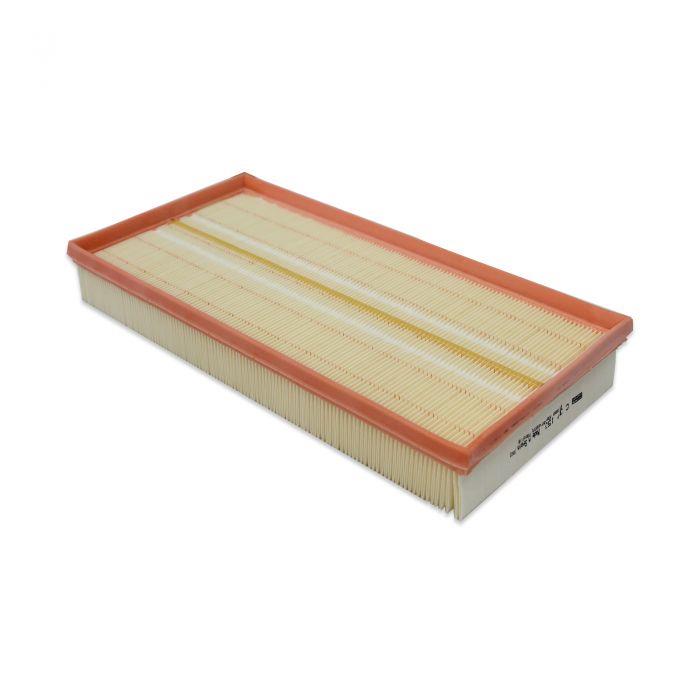

Mann Air Filter C37153
| Length | 364mm |
|---|---|
| Width | 185mm |
| Height | 50mm |
| Filter Type | Filter Insert |
| VAG OE Numbers | 1J0129620, 1J0129620A, 1JO129620 |

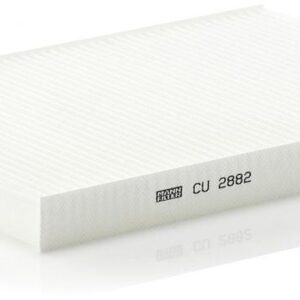

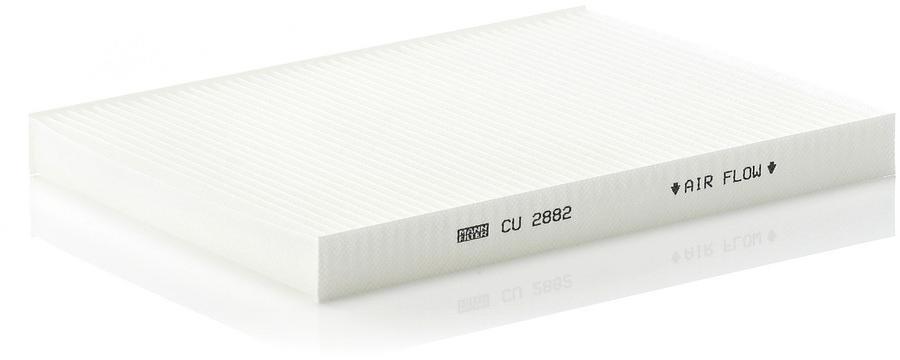

Mann-filter Cabin Air Filter CU2882
| Length | 280mm |
|---|---|
| Width | 206mm |
| Height | 25mm |
| Filter Type | Particulate Filter |
| VAG OE Numbers | 1H0091700, 1H0819638, 1H0819638A, 1H0819638B, 1H0819644, 1H0819644A, 1H0819644B, 1H0819646, 1H0819698, 1HO819644 |

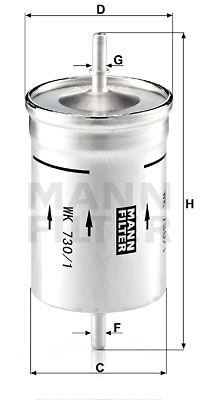

Mann-filter Fuel filter WK730/1
| Height | 174mm |
|---|---|
| Outer diameter | 75mm |
| Filter Type | In-Line Filter |
| Inlet Ø | 7.9mm |
| Outlet Ø | 7.9mm |
| Outer diameter 1 | 81mm |
| VAG OE Numbers | 1J0201511A |
Mann-filter Oil Filter W719/30
| Height | 123mm |
|---|---|
| Thread size | 3/4-16 UNF |
| Outer diameter | 76mm |
| Filter Type | Spin-on Filter |
| Supplementary Article/Info 2 | with one anti-return valve |
| Outer diameter 2 | 71mm |
| Inner Diameter 2 | 62mm |
| Opening Pressure Bypass Valve | 2.5bar |
| Article number of the recommended special tool | LS 7 |
| VAG OE Numbers | 034115561A, 06A115561, 06A115561B, 06A115561E, 078115561K, 1JM115561BZ |
