Starter Motors

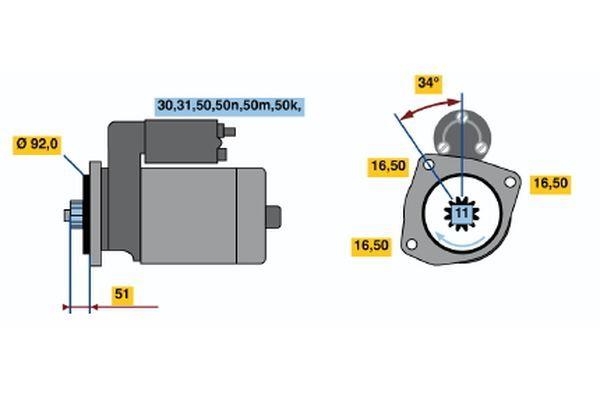

Specifications
| Voltage | 24V |
|---|---|
| Number of Teeth | 11 |
| Starter Output | 8.4kW |
| Length | 381mm |
| Bore Ø | 16.5mm |
| Position / Degree | links |
| Clamp | 30, 31(isol.), 50 |
| Rotation Direction | Clockwise rotation |
| Flange Ø | 92mm |
| Number of Thread Bores | 0 |
| Bore Ø 2 | 16.5mm |
| Bore Ø 3 | 16.5mm |
| Starter Type | Floating pinion |
| Number of mounting bores | 3 |
| Mounting Angle | 34Degree |
| Pinion Home Position | 48mm |
| Mounting hole angle measurement | 34Degree |
