Brake Kits
Bosch Disc Rotors, Pads & Sensors

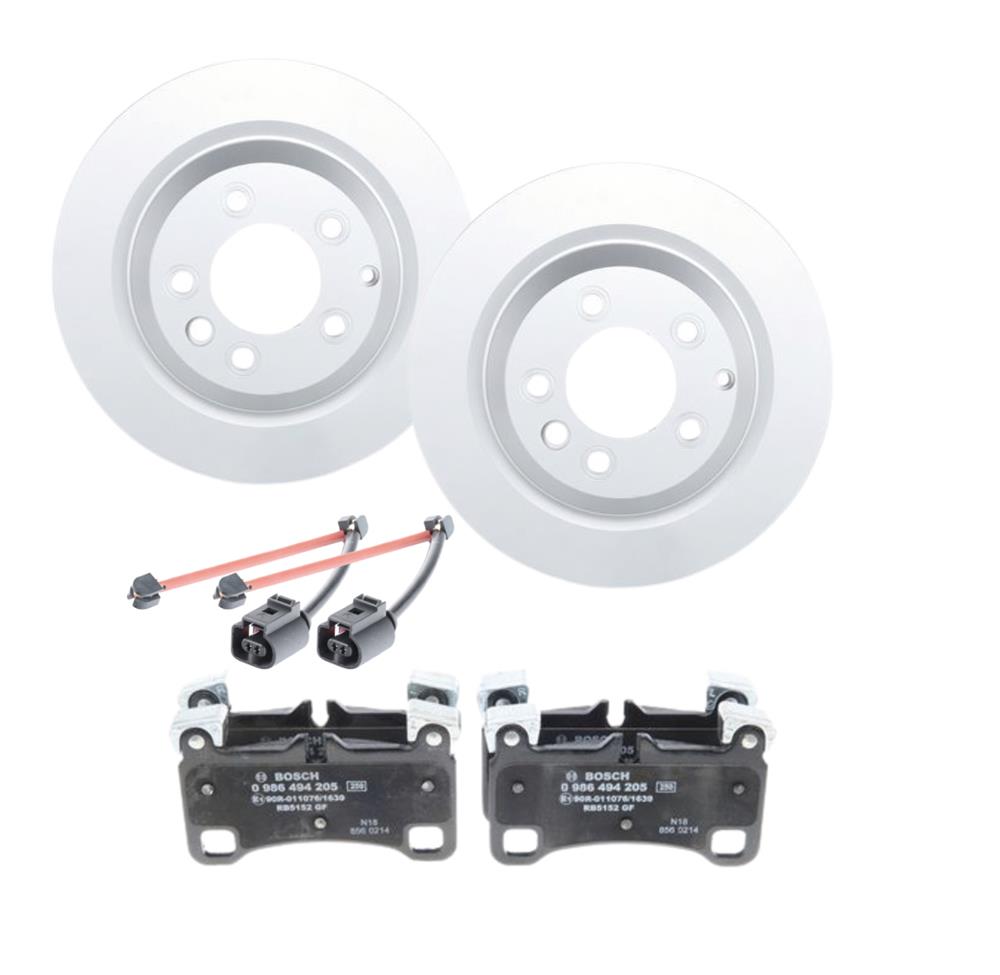

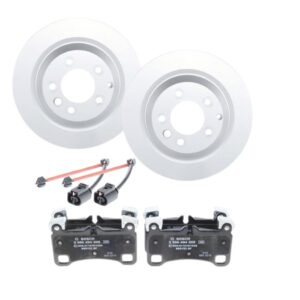

Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Bosch Rear Brake Disc Rotor 358mm BD1137 | Bosch | 2 |
| Bosch Rear Brake Pads BP1141 | Bosch | 1 |
| Bosch Rear Brake Pad Wear Sensor AP340 | Bosch | 2 |
Specifications

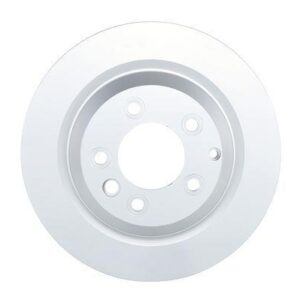

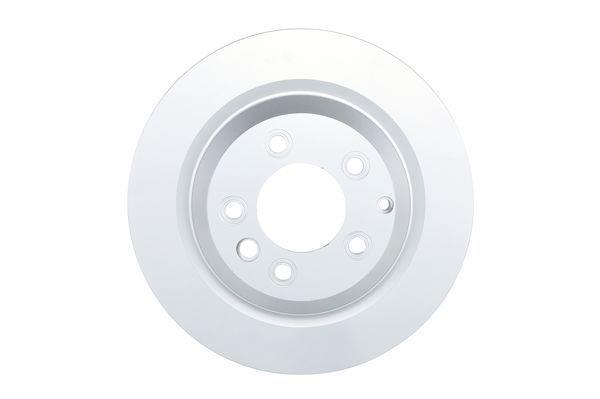

Bosch Rear Brake Disc Rotor 358mm BD1137
| Height | 73.5mm |
|---|---|
| Brake Disc Type | Vented |
| Brake Disc Thickness | 28mm |
| Min. thickness | 26mm |
| Finish | Alloyed / High-carbon |
| Outer diameter | 358mm |
| Number of Holes | 5 |
| Centering Diameter | 85mm |
| Pitch Circle Ø | 130mm |
| Surface | Coated |
| Fulfils ECE norm. | ECE-R90 |
| Hole Ø up to | 15.4mm, 16.5mm |
| AUDI OE Numbers | 7L8615601A, 7L8615601D, 7L8615601E |
| PORSCHE OE Numbers | 95535240150, 95535240151, 95535240300, 95835240150 |
| VW OE Numbers | 7L8615601A, 7L8615601D, 7L8615601E |

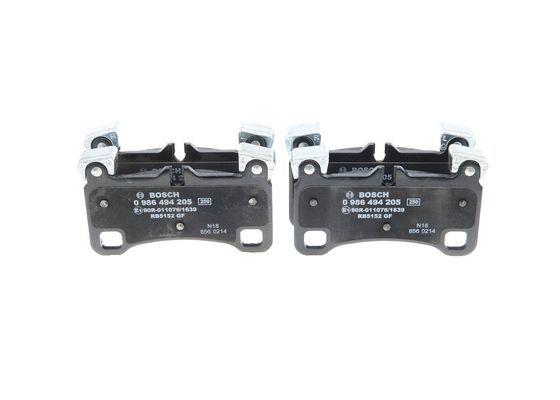

Bosch Rear Brake Pads BP1141
| Thickness | 15.3mm |
|---|---|
| Test Mark | ECE-R90 |
| Width | 132.4mm |
| Height | 77.3mm |
| Material | Low-Metallic |
| Supplementary Article/Info 2 | with anti-squeak plate |
| WVA Number | 24296 |
| AUDI OE Numbers | 7L0698451F |
| PORSCHE OE Numbers | 95535293961, 95535293962, 95535293963, 95535293964 |
| VW OE Numbers | 7L0698451E, 7L0698451F |

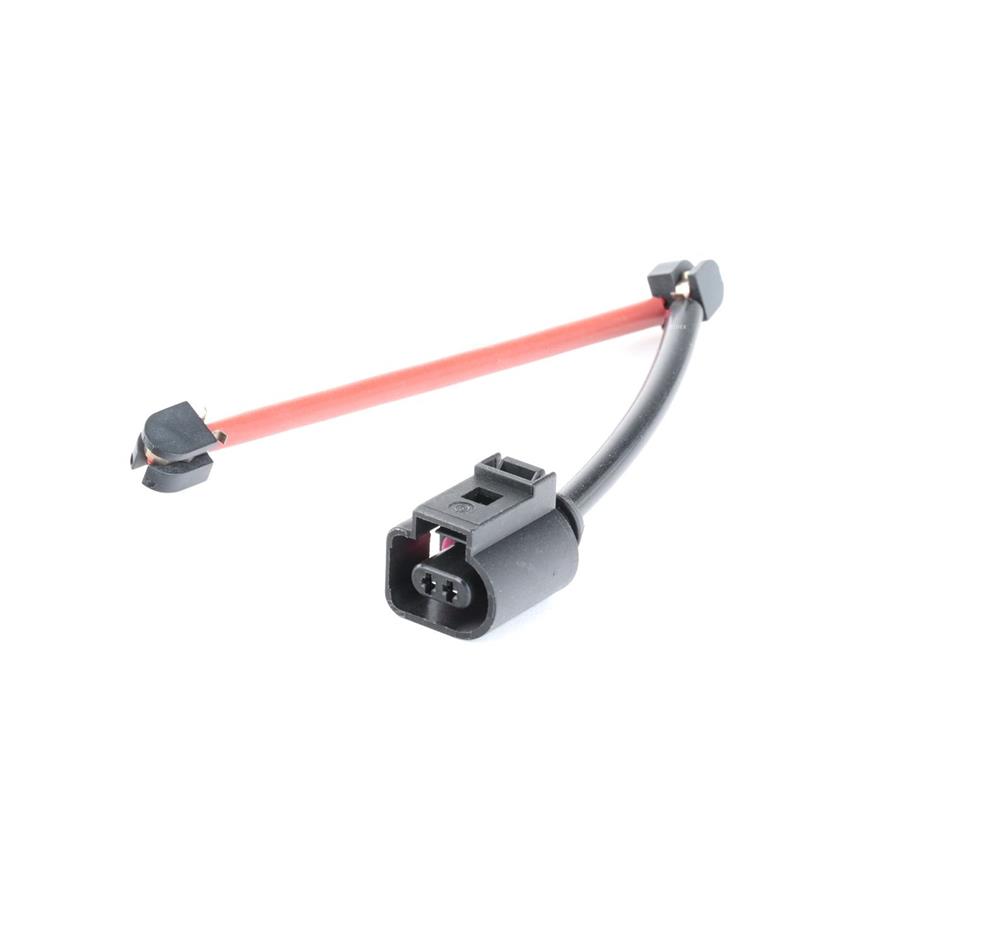

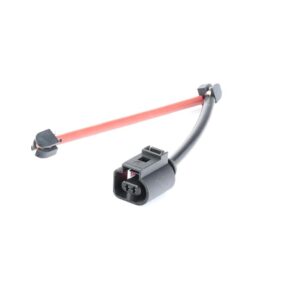

Bosch Rear Brake Pad Wear Sensor AP340
| Length | 245mm |
|---|---|
| Brake Type | Disc Brake |
| AUDI OE Numbers | 7L5907637B |
| PORSCHE OE Numbers | 95561236570 |
| VW OE Numbers | 7L5907637B |
