Brake Discs
Brake Disc Rotors & Pads

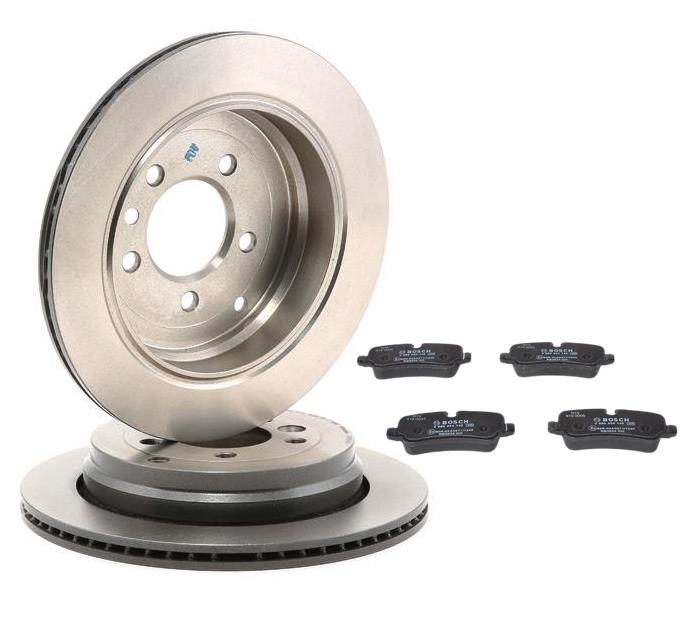

Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Bosch Rear Brake Pads BP1059 | Bosch | 1 |
| Bosch Rear Brake Disc Rotor 325mm BD1243 | Bosch | 2 |
Specifications

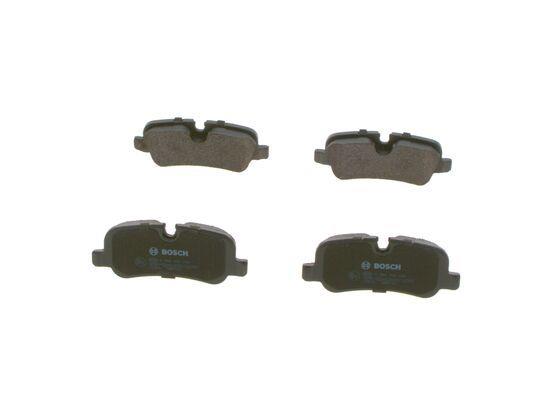

Bosch Rear Brake Pads BP1059
| Thickness | 17.5mm |
|---|---|
| Test Mark | ECE-R90 |
| Width | 116.8mm |
| Height | 46.3mm |
| Material | Low-Metallic |
| Brake System | Lucas-Girling |
| Supplementary Article/Info 2 | with mounting manual, with anti-squeak plate |
| WVA Number | 24192 |
| LAND ROVER OE Numbers | LR012993, LR019627, LR032377, LR032903, LR055454, LR055455 |
| ROVER OE Numbers | LR015519, LR016808, LR019627, LR021316, LR055454, SFP500020, SFP500021, SFP500022, SFP500040, SFP500140 |

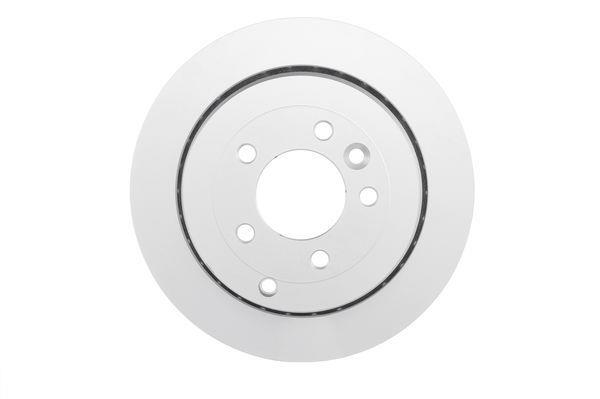

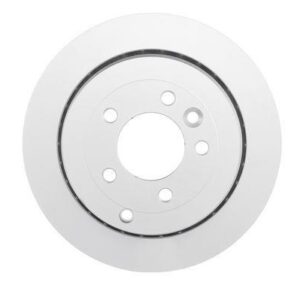

Bosch Rear Brake Disc Rotor 325mm BD1243
| Height | 59.5mm |
|---|---|
| Brake Disc Type | Vented |
| Brake Disc Thickness | 20mm |
| Min. thickness | 17mm |
| Outer diameter | 325mm |
| Number of Holes | 5 |
| Centering Diameter | 79mm |
| Pitch Circle Ø | 120mm |
| Surface | Coated |
| Fulfils ECE norm. | ECE-R90 |
| Hole Ø up to | 15mm |
| LAND ROVER OE Numbers | SDB000636 |
| ROVER OE Numbers | SDB000634, SDB000635, SDB000636 |
