Brake Kits
Brake Disc Rotors, Pads & Sensor

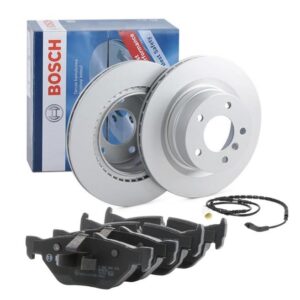

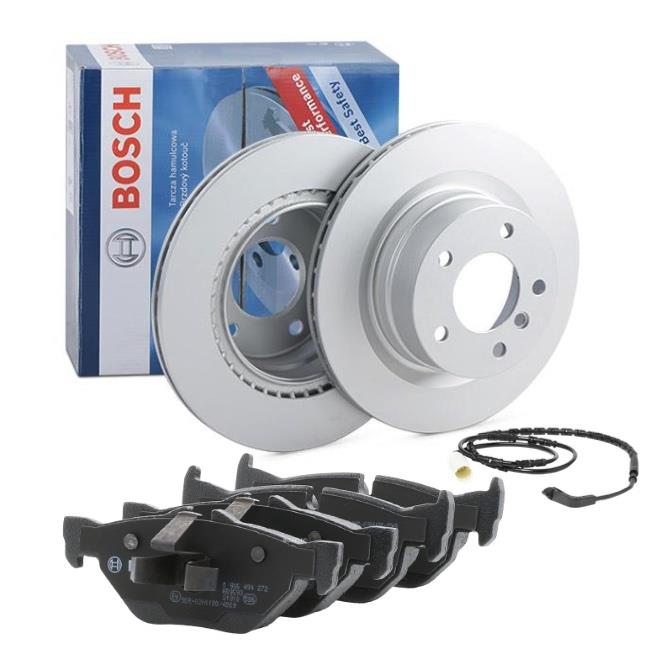

Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Bosch Rear Brake Disc Rotor 300mm BD1356 | Bosch | 2 |
| Bosch Rear Brake Pads BP1184 | Bosch | 1 |
| Bosch Rear Brake Pad Wear Sensor AP341 | Bosch | 1 |
Specifications

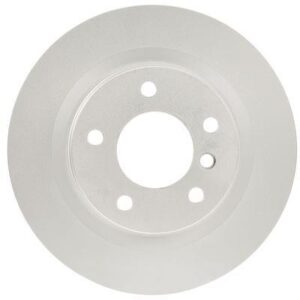

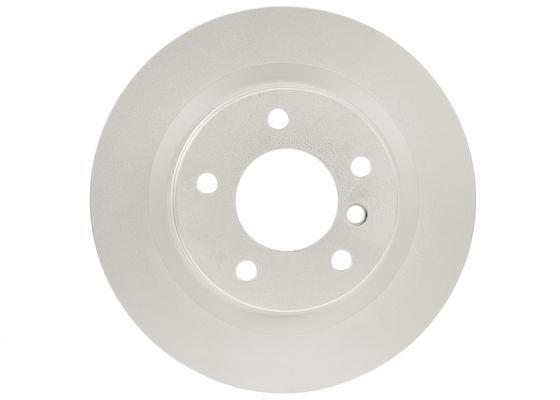

Bosch Rear Brake Disc Rotor 300mm BD1356
| Height | 76.1mm |
|---|---|
| Brake Disc Type | Vented |
| Brake Disc Thickness | 20mm |
| Min. thickness | 18.4mm |
| Finish | High-carbon |
| Outer diameter | 300mm |
| Number of Holes | 5 |
| Centering Diameter | 75mm |
| Pitch Circle Ø | 120mm |
| Surface | Coated |
| Hole Ø up to | 14.7mm |
| BMW OE Numbers | 34216778051, 34216855005 |

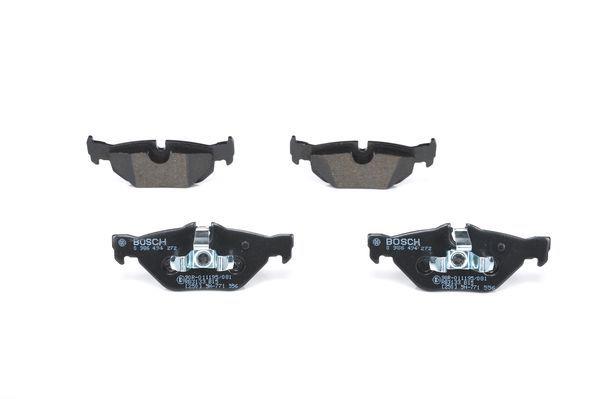

Bosch Rear Brake Pads BP1184
| Thickness | 16.6mm |
|---|---|
| Test Mark | ECE-R90 |
| Width | 123.2mm |
| Height 1 | 47mm |
| Height 2 | 48.3mm |
| Material | Low-Metallic |
| Supplementary Article/Info 2 | with piston clip, with anti-squeak plate |
| WVA Number | 23926 |
| Article number of recommended accessories | SELECTIVE |
| BMW OE Numbers | 34121288891, 34121288892, 34121288893, 34121288894, 34212288892, 34216767148, 34216767150, 34216773161, 34216774692, 34216790761 |

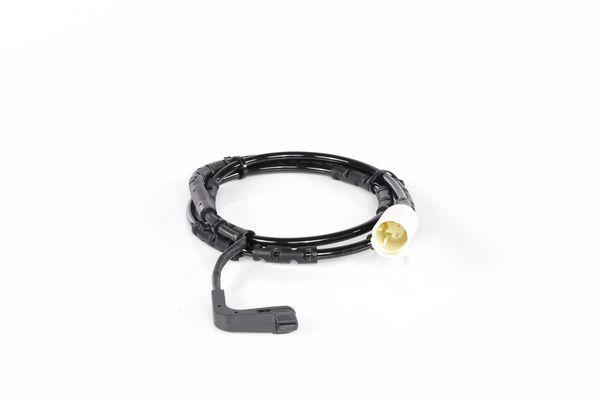

Bosch Rear Brake Pad Wear Sensor AP341
| Length | 1,095mm |
|---|---|
| Brake Type | Disc Brake |
| BMW OE Numbers | 34356762253, 34356789445 |
