Brake Kits
Bosch Disc Rotors, Pads & Sensor
Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Bosch Rear Brake Pads BP1567 | Bosch | 1 |
| Bosch Rear Brake Disc Rotor 300mm BD1304 | Bosch | 2 |
| Bosch Front Rear Brake Pad Wear Sensor AP342 | Bosch | 1 |
Specifications

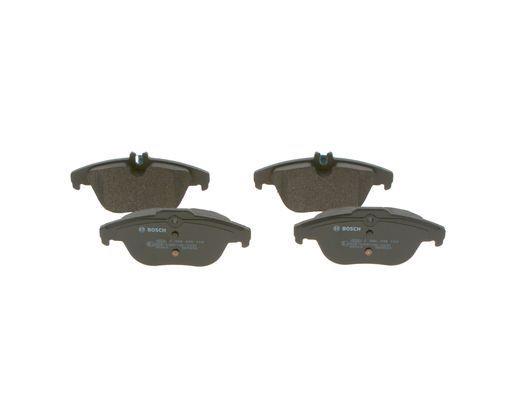

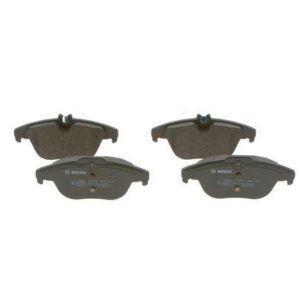

Bosch Rear Brake Pads BP1567
| Thickness | 16.7mm |
|---|---|
| Test Mark | ECE-R90 |
| Width | 122.5mm |
| Height | 54.6mm |
| Material | Low-Metallic |
| Supplementary Article/Info 2 | with mounting manual, with piston clip, with anti-squeak plate |
| WVA Number | 24253 |
| MERCEDES-BENZ OE Numbers | 0054200720, 0054204220, 0054204320, 0054204920, 0054205120, 0054208120, 0064201320, 0064206120, 0074206120, 0074208520, 54200720, 54204320, 54204920, 54208120, 64201320, A0054200720, A0054204220, A0054204320, A0054204920, A0054205120, A0054208120, A0064201320, A0064206120, A0074206120, A0074208520 |

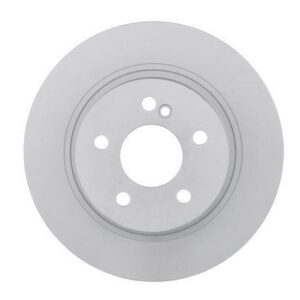

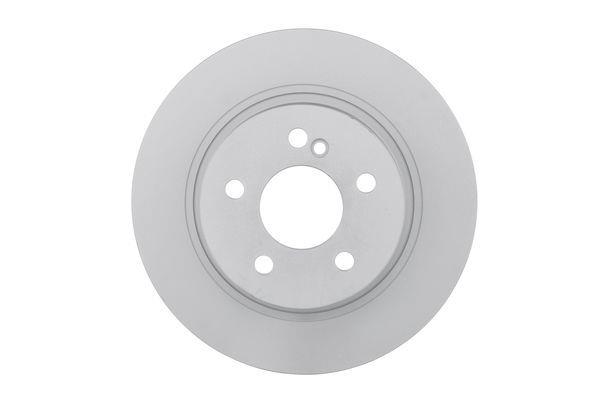

Bosch Rear Brake Disc Rotor 300mm BD1304
| Height | 57.7mm |
|---|---|
| Brake Disc Type | Solid |
| Brake Disc Thickness | 10mm |
| Min. thickness | 8.3mm |
| Outer diameter | 299.9mm |
| Number of Holes | 5 |
| Centering Diameter | 67mm |
| Pitch Circle Ø | 112mm |
| Surface | Coated |
| Supplementary Article/Info 2 | with bolts/screws |
| Fulfils ECE norm. | ECE-R90 |
| Hole Ø up to | 15.3mm |
| MERCEDES-BENZ OE Numbers | 2044230612, 2044230912, 2044231512, A2044230612, A2044230912, A2044231512 |
Bosch Front Rear Brake Pad Wear Sensor AP342
| Length | 95mm |
|---|---|
| Brake Type | Disc Brake |
| MERCEDES-BENZ OE Numbers | 2115401717, A2115401717 |
