Brake Kits
Brake Disc Rotors, Pads & Sensors

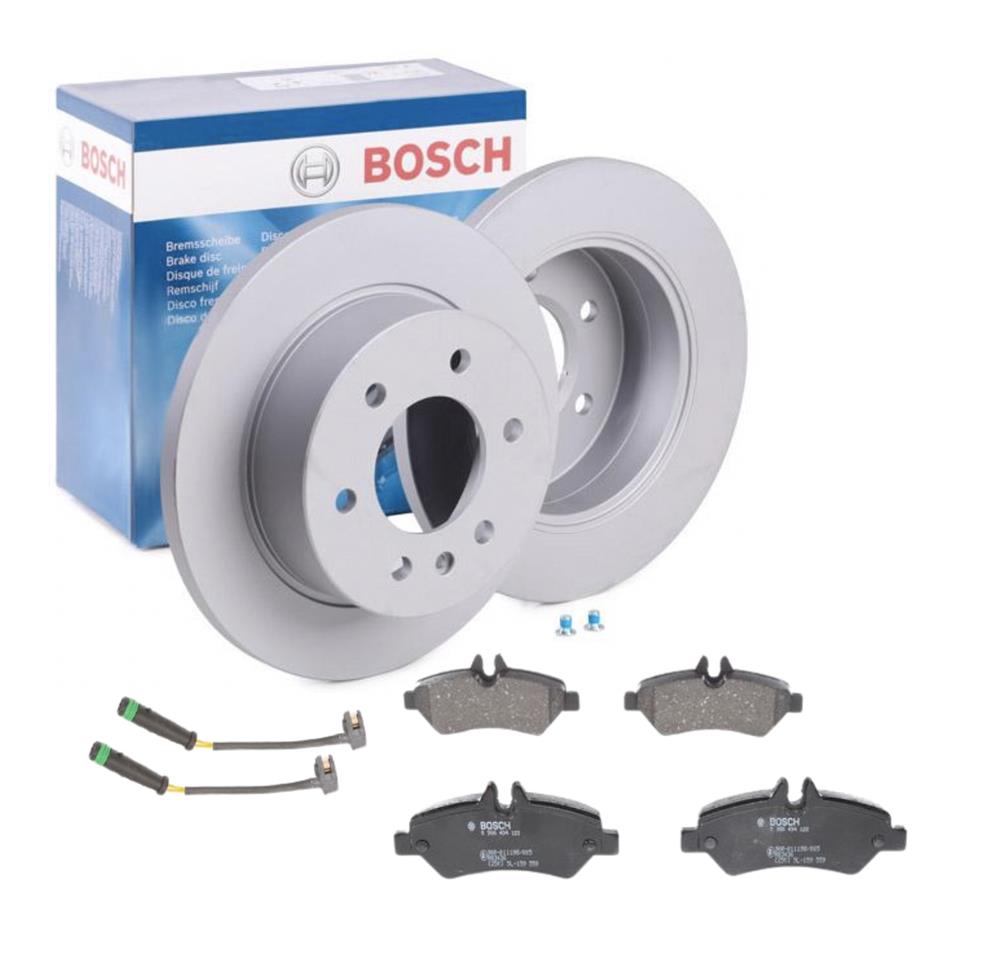

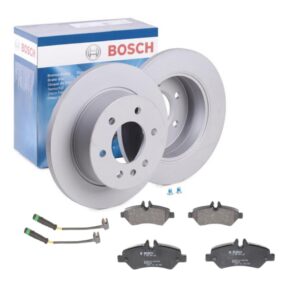

Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Bosch Rear Brake Disc Rotor 298mm BD1158 | Bosch | 2 |
| Bosch Rear Brake Pads BP1033 | Bosch | 1 |
| Bosch Front Brake Pad Wear Sensor AP309 | Bosch | 2 |
Specifications

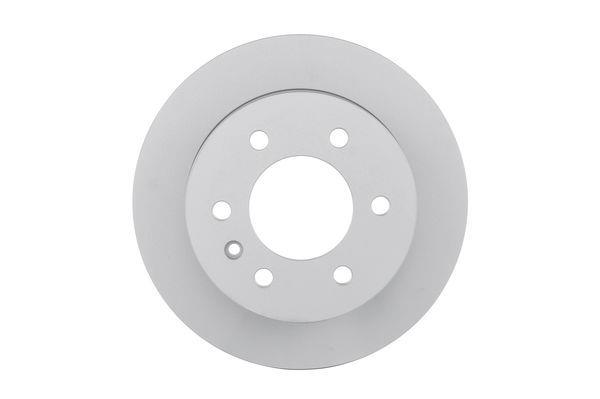

Bosch Rear Brake Disc Rotor 298mm BD1158
| Rim Hole Number | 6 |
|---|---|
| Test Mark | ECE R90 APPROVED |
| Height | 71mm |
| Weight | 7.3kg |
| Brake Disc Type | Solid |
| Brake Disc Thickness | 16mm |
| Min. thickness | 14mm |
| Hole Arrangement / Number | 7/6 |
| Finish | High-carbon |
| Outer diameter | 298mm |
| Centering Diameter | 85mm |
| Pitch Circle Ø | 130mm |
| Surface | Coated |
| MERCEDES-BENZ OE Numbers | 9064230012, 9104230000, 9104230100, A9064230012, A9104230000, A9104230100 |
| VAG OE Numbers | 2E0615601A |

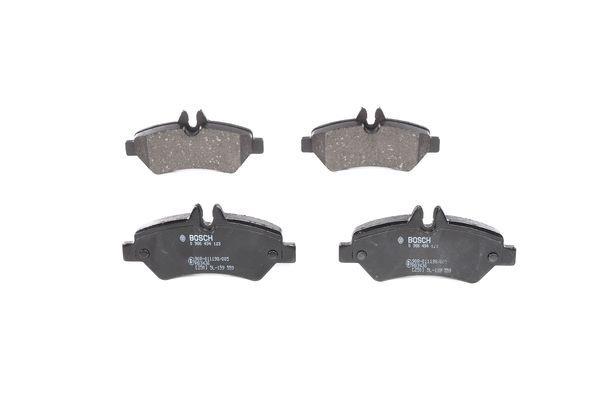

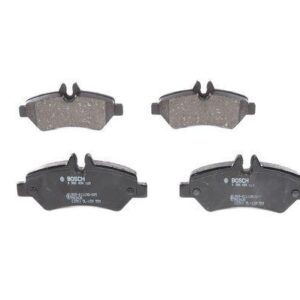

Bosch Rear Brake Pads BP1033
| Thickness | 18.8mm |
|---|---|
| Test Mark | ECE-R90 |
| Width | 136.7mm |
| Height | 63.2mm |
| Material | Low-Metallic |
| Brake System | Bosch |
| Supplementary Article/Info 2 | with mounting manual, with anti-squeak plate |
| WVA Number | 29190 |
| MERCEDES-BENZ OE Numbers | 0044206920, 0084205120, A0044206920, A0084205120 |
| VW OE Numbers | 2E0698451 |

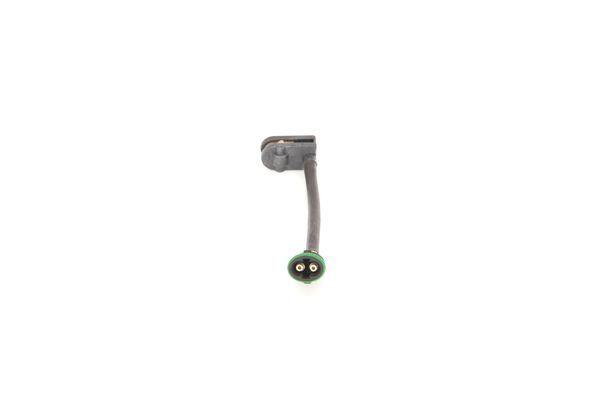

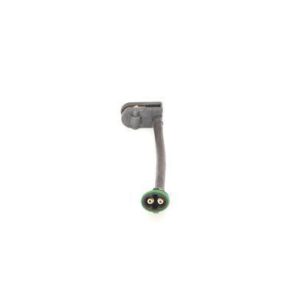

Bosch Front Brake Pad Wear Sensor AP309
| Length | 103mm |
|---|---|
| Brake Type | Disc Brake |
| MERCEDES-BENZ OE Numbers | 9065401417, 9065401517, A9065401417, A9065401517 |
| VW OE Numbers | 2E0906206C |
