Brake Kits
Brake Disc Rotors & Pads

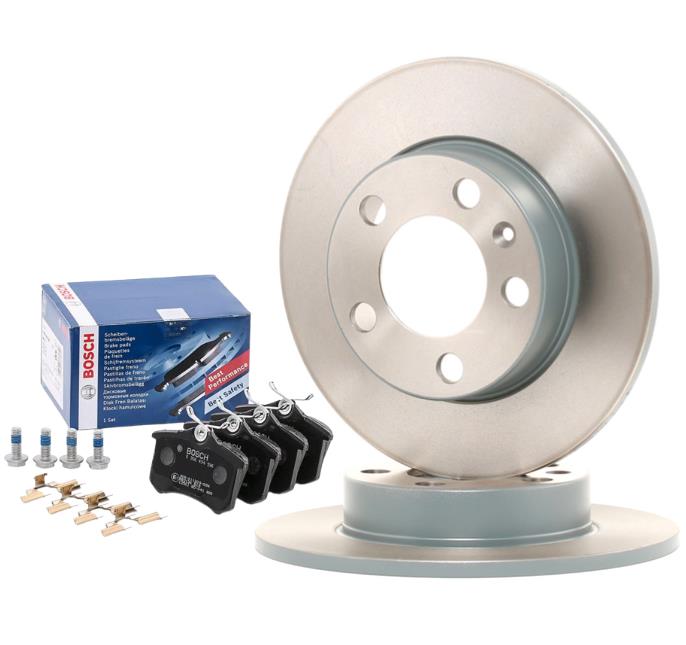

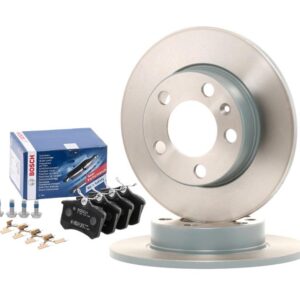

Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Bosch Rear Brake Disc Rotor 232mm PBR803 | Bosch | 2 |
| Bosch Rear Brake Pads BP617 | Bosch | 1 |
Specifications

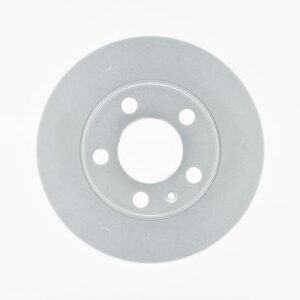

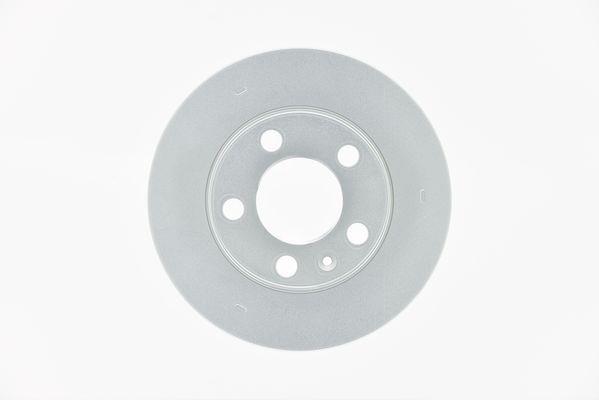

Bosch Rear Brake Disc Rotor 232mm PBR803
| Height | 39.5mm |
|---|---|
| Brake Disc Type | Solid |
| Brake Disc Thickness | 9mm |
| Min. thickness | 7mm |
| Outer diameter | 231.7mm |
| Number of Holes | 5 |
| Centering Diameter | 65mm |
| Pitch Circle Ø | 100mm |
| Hole Ø up to | 15.8mm |
| AUDI OE Numbers | 1J0615601, 1J0615601P |
| VW OE Numbers | 2Q0615601H, 6QD615601, 6QD615601A, 6RD615601 |

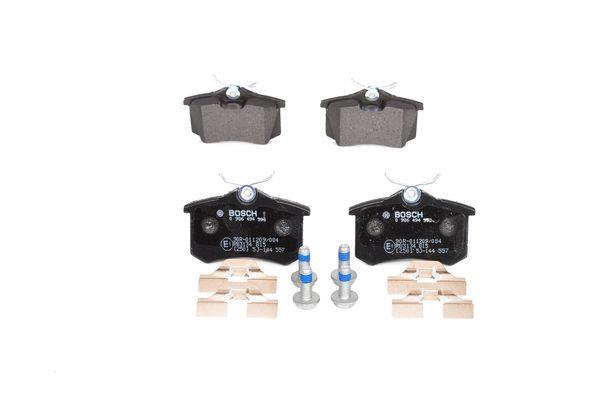

Bosch Rear Brake Pads BP617
| Thickness | 16.3mm |
|---|---|
| Test Mark | ECE-R90 |
| Width | 87.2mm |
| Height | 53.2mm |
| Material | Low-Metallic |
| Brake System | Lucas-Girling |
| Supplementary Article/Info 2 | with mounting manual, with bolts/screws, with anti-squeak plate |
| WVA Number | 20960 |
| Number of bolts/screws | 4 |
| AUDI OE Numbers | 1E0698451, 1E0698451G, 1H0698451, 1H0698451A, 1H0698451D, 1H0698451G, 1J0698451, 1J0698451B, 1J0698451C, 1J0698451D, 1J0698451G, 1J0698451H, 1J0698451J, 1J0698451L, 1J0698451M, 1J0698451PS, 1J0698451R, 1J0698451S, 1K0698451C, 1K0698451J, 1K0698451M, 2Q0698451, 3B0698451A, 4B0698451, 4B0698451B, 4B0698451E, 4D0698451C, 4D0698451D, 4D0698451E, 5C0698451, 5C0698451A, 5Q0698451M, 6C0698451A, 6X0698451, 6X0698451A, 7M0698451, 7M3698451A, 8E0698451, 8E0698451A, 8E0698451D, 8E0698451E, 8E0698451K, JZW698451 |
| CITROËN OE Numbers | 1608520380, 1608681580, 1609252880, 1611456380, 1611837980, 1617250180, 1623180580, 425223, 425232, 425241, 425396, 425420, 425428, 425441, 425467, 4254C1 |
| FIAT OE Numbers | 71773148, 9404252328, 9467529088, 9467648988, K9404252328, K9467529088, K9467648988 |
| FORD OE Numbers | 1001096, 1027640, 1027650, 1029782, 1115107, 1205557, 1343514, 1345340, 150698451, 5M212M008CA, 5M2J2M008CA, 95VWX2M008AA, 95WX2M008BA |
| PEUGEOT OE Numbers | 1608520380, 1608681580, 1609252880, 1619790680, 1623180580, 425108, 425223, 425396, 425420, 425428, 425467, 4254C1, 573032S |
| RENAULT OE Numbers | 440603530R, 440606418R |
| SKODA OE Numbers | 1E0698451, 1E0698451G, 1H0698451, 1H0698451A, 1H0698451D, 1H0698451G, 1J0698451, 1J0698451B, 1J0698451C, 1J0698451D, 1J0698451G, 1J0698451H, 1J0698451J, 1J0698451L, 1J0698451M, 1J0698451P, 1J0698451R, 1J0698451S, 1K0698451C, 1K0698451J, 1K0698451M, 3B0698451A, 4B0698451B, 4B0698451E, 4D0698451C, 4D0698451D, 4D0698451E, 5C0698451, 5C0698451A, 5K0698451B, 5Q0698451M, 6C0698451A, 6X0698451, 6X0698451A, 7M0698451, 7M3698451A, 8E0698451, 8E0698451A, 8E0698451D, 8E0698451E, 8E0698451K, JZW698451, JZW698451A |
| VW OE Numbers | 1E0698451, 1E0698451B, 1E0698451C, 1E0698451D, 1E0698451E, 1E0698451G, 1H0615415, 1H0615415A, 1H0615415D, 1H0698451, 1H0698451A, 1H0698451D, 1H0698451G, 1J0698451, 1J0698451B, 1J0698451C, 1J0698451D, 1J0698451G, 1J0698451H, 1J0698451J, 1J0698451K, 1J0698451L, 1J0698451M, 1J0698451P, 1J0698451R, 1J0698451S, 1K0698451A, 1K0698451C, 1K0698451J, 1K0698451M, 2Q0698451, 3B0698451A, 4B0698451, 4B0698451B, 4B0698451E, 4D0698451C, 4D0698451D, 4D0698451E, 5C0698451, 5C0698451A, 5C0698451B, 5C0698451C, 5K0698451B, 5Q0698451A, 5Q0698451E, 5Q0698451G, 5Q0698451M, 6C0698451A, 6R0698451, 6X0698451, 6X0698451A, 7M0698451, 7M3698451A, 8D0698451, 8D0698451A, 8D0698451B, 8E0698451, 8E0698451A, 8E0698451B, 8E0698451D, 8E0698451E, 8E0698451K, JZW698451, JZW698451A |
