Brake Kits
Brake Disc Rotors, Pads & Sensor

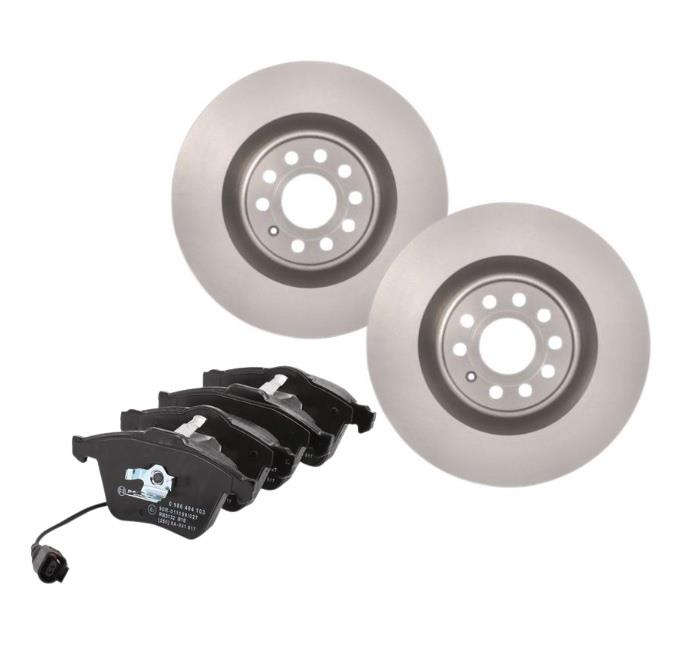

Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Bosch Front Brake Disc Rotor 345mm BD1071 | Bosch | 2 |
| Bosch Front Brake Pads BP1013 | Bosch | 1 |
Specifications

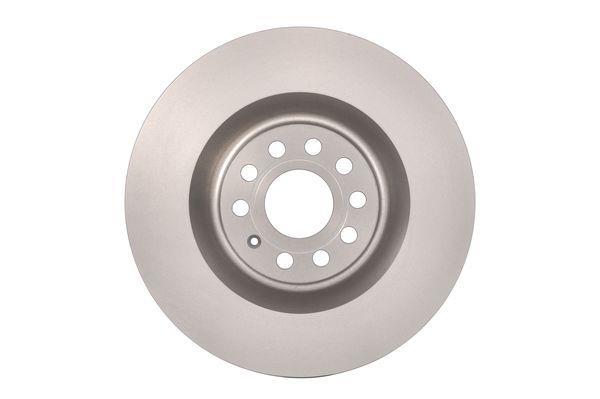

Bosch Front Brake Disc Rotor 345mm BD1071
| Height | 49.6mm, 49.7mm |
|---|---|
| Brake Disc Type | Vented |
| Brake Disc Thickness | 30mm |
| Min. thickness | 27mm |
| Finish | High-carbon |
| Outer diameter | 345mm |
| Number of Holes | 9 |
| Centering Diameter | 65mm |
| Pitch Circle Ø | 112mm |
| Surface | Oiled |
| Fulfils ECE norm. | ECE-R90 |
| Hole Ø up to | 15.3mm |
| AUDI OE Numbers | 1K0615301AR, 1K0615301M |
| SKODA OE Numbers | 1K0615301AR, 1K0615301M |
| VW OE Numbers | 1K0615301AB, 1K0615301AR, 1K0615301M |

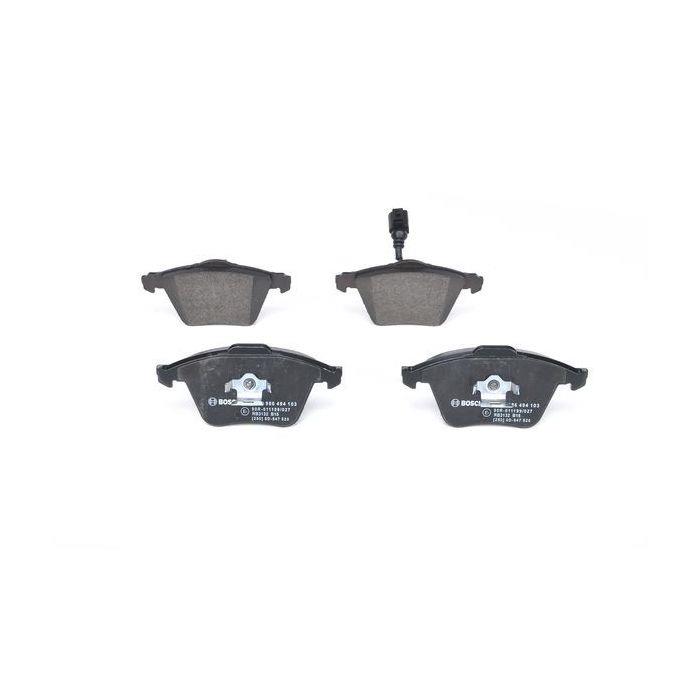

Bosch Front Brake Pads BP1013
| Thickness | 20mm |
|---|---|
| Test Mark | ECE-R90 |
| Height | 72.9mm |
| Material | Low-Metallic |
| Wear Warning Contact | with integrated wear sensor |
| Brake System | ATE |
| Width 1 | 155.3mm |
| Width 2 [mm] | 156.5mm |
| Supplementary Article/Info 2 | with piston clip, with anti-squeak plate |
| WVA Number | 23801 |
| AUDI OE Numbers | 1K0698151B |
| SKODA OE Numbers | 1K0698151B |
| VW OE Numbers | 1K0698151B |
