Brake Kits
Brake Disc Rotors, Pads & Sensor

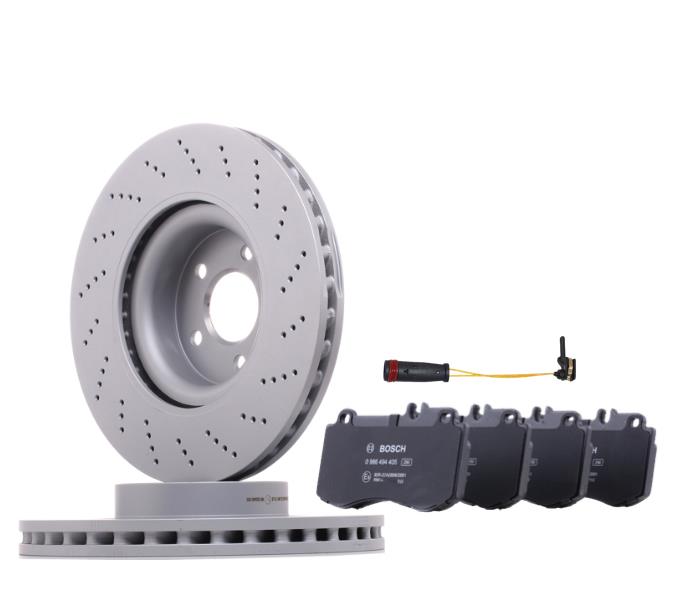

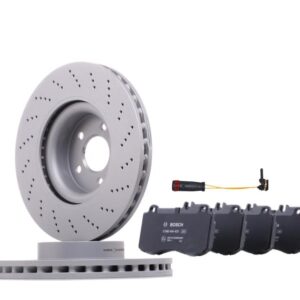

Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Bosch Front Brake Disc Rotor 344mm BD1594 | Bosch | 2 |
| Bosch Front Brake Pads BP1329 | Bosch | 1 |
| Bosch Front Rear Brake Pad Wear Sensor AP342 | Bosch | 1 |
Specifications

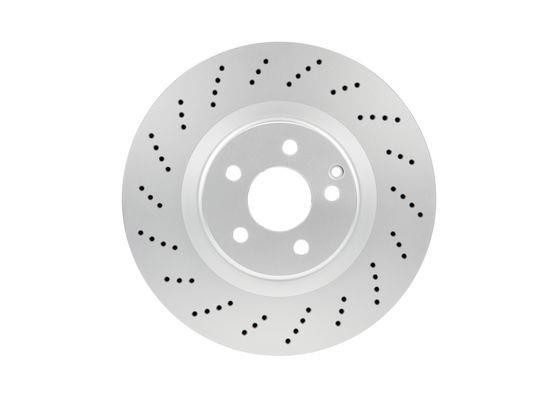

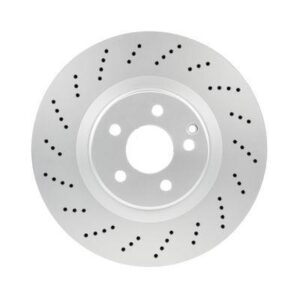

Bosch Front Brake Disc Rotor 344mm BD1594
| Height | 64.6mm |
|---|---|
| Brake Disc Type | Perforated, Vented |
| Brake Disc Thickness | 32mm |
| Min. thickness | 30mm |
| Finish | Alloyed / High-carbon |
| Outer diameter | 344mm |
| Number of Holes | 5 |
| Centering Diameter | 67mm |
| Pitch Circle Ø | 112mm |
| Surface | Coated |
| Supplementary Article/Info 2 | with bolts/screws |
| Fulfils ECE norm. | ECE-R90 |
| Hole Ø up to | 15.3mm |
| MERCEDES-BENZ OE Numbers | 0004211412, 0004211512, 2044211112, 2074210012, A0004211412, A0004211512, A2044211112, A2074210012 |

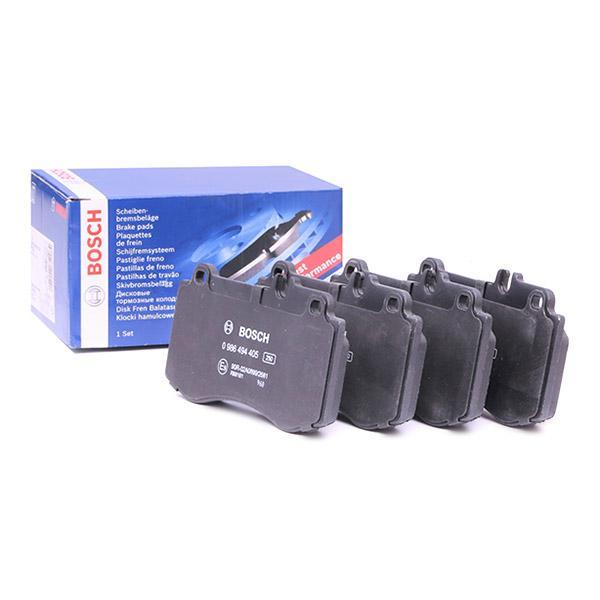

Bosch Front Brake Pads BP1329
| Thickness | 17.3mm |
|---|---|
| Test Mark | ECE-R90 |
| Width | 141.7mm |
| Height | 79.9mm |
| Material | Low-Metallic |
| Supplementary Article/Info 2 | with mounting manual, with anti-squeak plate |
| WVA Number | 24976 |
| MERCEDES-BENZ OE Numbers | 0054207720, 0054208520, 0074204920, 0074206320, 54207720, A0054207720, A0054208520, A0074204920, A0074206320 |

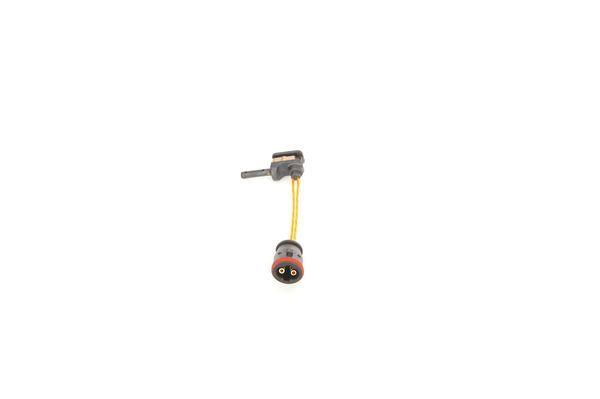

Bosch Front Rear Brake Pad Wear Sensor AP342
| Length | 95mm |
|---|---|
| Brake Type | Disc Brake |
| MERCEDES-BENZ OE Numbers | 2115401717, A2115401717 |
