Brake Kits
Brake Disc Rotors, Pads & Sensor
Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Bosch Front Brake Disc Rotor 321mm BD1163 | Bosch | 2 |
| Bosch Front Brake Pads BP1577 | Bosch | 1 |
Specifications

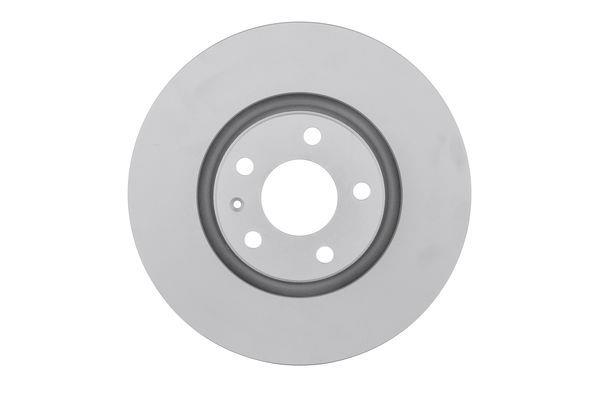

Bosch Front Brake Disc Rotor 321mm BD1163
| Height | 59.7mm |
|---|---|
| Brake Disc Type | Vented |
| Brake Disc Thickness | 30mm |
| Min. thickness | 28mm |
| Finish | High-carbon |
| Outer diameter | 321mm |
| Number of Holes | 5 |
| Centering Diameter | 68mm |
| Pitch Circle Ø | 112mm |
| Surface | Coated |
| Supplementary Article/Info 2 | with bolts/screws |
| Fulfils ECE norm. | ECE-R90 |
| Hole Ø up to | 15.3mm |
| AUDI OE Numbers | 4F0615301E |
| VW OE Numbers | 4F0615301E |

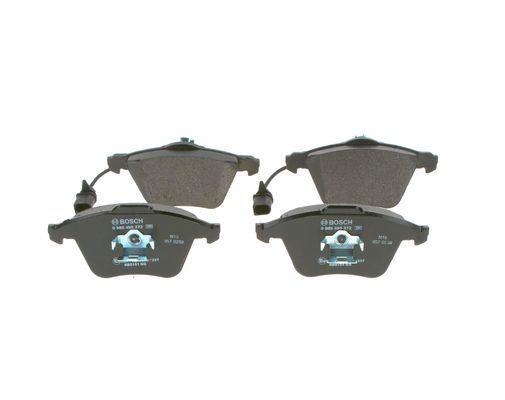

Bosch Front Brake Pads BP1577
| Thickness | 20.3mm |
|---|---|
| Height | 72.9mm |
| Number of wear indicators | 2per axle |
| Wear Warning Contact | with integrated wear sensor, with integrated wear warning contact |
| Brake System | Teves |
| Warning Contact Length | 252mm |
| Width 1 | 155.3mm, 156.3mm |
| Width 2 [mm] | 155.1mm, 156.5mm |
| WVA Number | 23763 |
| AUDI OE Numbers | 4E0698151F, 4E0698151M, 4E0698151S, 4F0698151A, 8E0698151G, 8E0698151L |
| SKODA OE Numbers | 4E0698151F, 4E0698151M, 4F0698151A, 8E0698151G, 8E0698151L |
| VW OE Numbers | 4E0698151F, 4E0698151M, 4F0698151A, 8E0698151G, 8E0698151L |
