Brake Kits
Brake Disc Rotors & Brake Pads

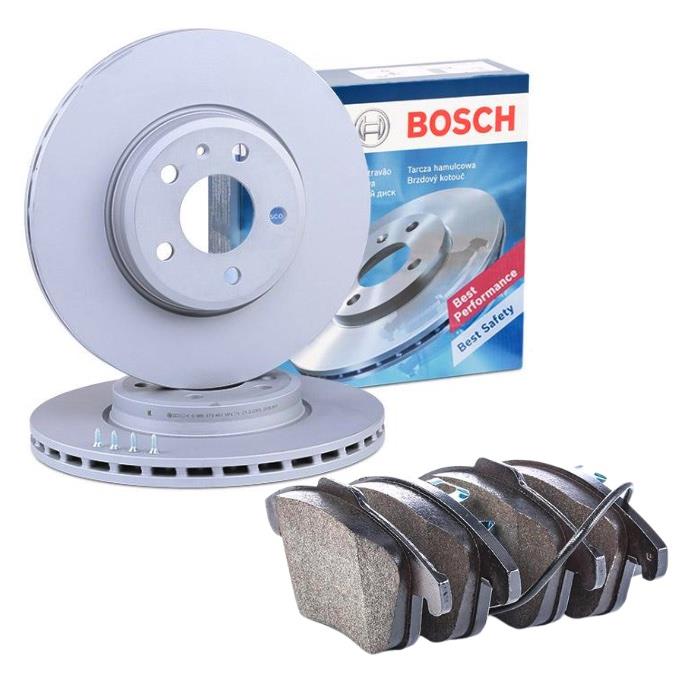

Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Bosch Front Brake Disc Rotor 314mm BD1326 | Bosch | 2 |
| Bosch Front Brake Pads BP1548 | Bosch | 1 |
Specifications
Bosch Front Brake Disc Rotor 314mm BD1326
| Height | 52.2mm |
|---|---|
| Brake Disc Type | Vented |
| Brake Disc Thickness | 24.9mm |
| Min. thickness | 23mm |
| Finish | High-carbon |
| Outer diameter | 314mm |
| Number of Holes | 5 |
| Centering Diameter | 68mm |
| Pitch Circle Ø | 112mm |
| Surface | Coated |
| Supplementary Article/Info 2 | with bolts/screws |
| Hole Ø up to | 15.3mm |
| AUDI OE Numbers | 8K0615301, 8W0615301G, 8W0615301T, L8KD615301 |
| VW OE Numbers | 8K0615301, 8W0615301G, 8W0615301T |
Bosch Front Brake Pads BP1548
| Thickness | 20mm |
|---|---|
| Width | 155.1mm, 155.3mm |
| Weight | 2.1kg |
| Number of wear indicators | 1per axle |
| Height 1 | 71.6mm |
| Height 2 | 66.4mm |
| Wear Warning Contact | with integrated wear sensor, with integrated wear warning contact |
| Brake System | Teves |
| Width 1 | 155.3mm |
| Width 2 [mm] | 155.4mm |
| WVA Number | 24706 |
| AUDI OE Numbers | 8K0698151A, 8K0698151F |
| SKODA OE Numbers | 8K0698151A, 8K0698151F |
| VW OE Numbers | 8K0098301F, 8K0698151A, 8K0698151F |
