Brake Kits
Brake Disc Rotors, Pads & Sensors
Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Bosch Front Brake Pad Wear Sensor AP322 | Bosch | 1 |
| Bosch Front Brake Pads BP1262 | Bosch | 1 |
| Bosch Front Brake Disc Rotor 312mm BD1248 | Bosch | 2 |
Specifications
Bosch Front Brake Pad Wear Sensor AP322
| Length | 695mm |
|---|---|
| Brake Type | Disc Brake |
| BMW OE Numbers | 34356779619, 34356789440 |

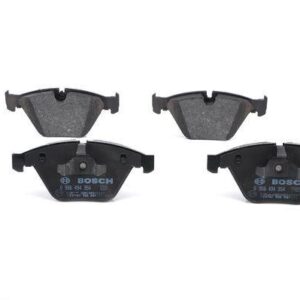

Bosch Front Brake Pads BP1262
| Thickness | 19.8mm |
|---|---|
| Test Mark | ECE-R90 |
| Width | 155.3mm |
| Height | 68.5mm |
| Material | Low-Metallic |
| Supplementary Article/Info 2 | with mounting manual, with piston clip, with anti-squeak plate |
| WVA Number | 23312 |
| BMW OE Numbers | 34112288858, 34116780711, 34116790759 |

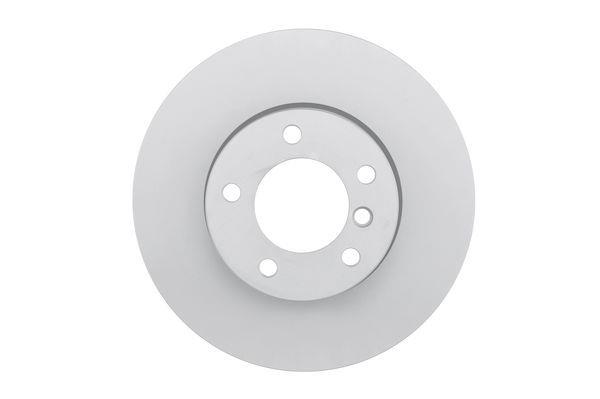

Bosch Front Brake Disc Rotor 312mm BD1248
| Height | 73.5mm |
|---|---|
| Weight | 9.1kg |
| Brake Disc Type | Internally Vented |
| Brake Disc Thickness | 24mm |
| Min. thickness | 22.4mm |
| Hole Arrangement / Number | 05/06 |
| Finish | High-carbon |
| Outer diameter | 312mm |
| Centering Diameter | 79mm |
| Pitch Circle Ø | 120mm |
| Surface | Coated |
| Supplementary Article/Info 2 | without wheel hub, without wheel studs |
| Wheel Bolt Bore Ø | 14.7mm |
| Number of bolts/screws | 2 |
| BMW OE Numbers | 34116774875, 34116792219, 34116855006, 34118848417, 6774875, 6792219, 6855006 |
