Brake Kits
Brake Disc Rotors, Pads & Sensor

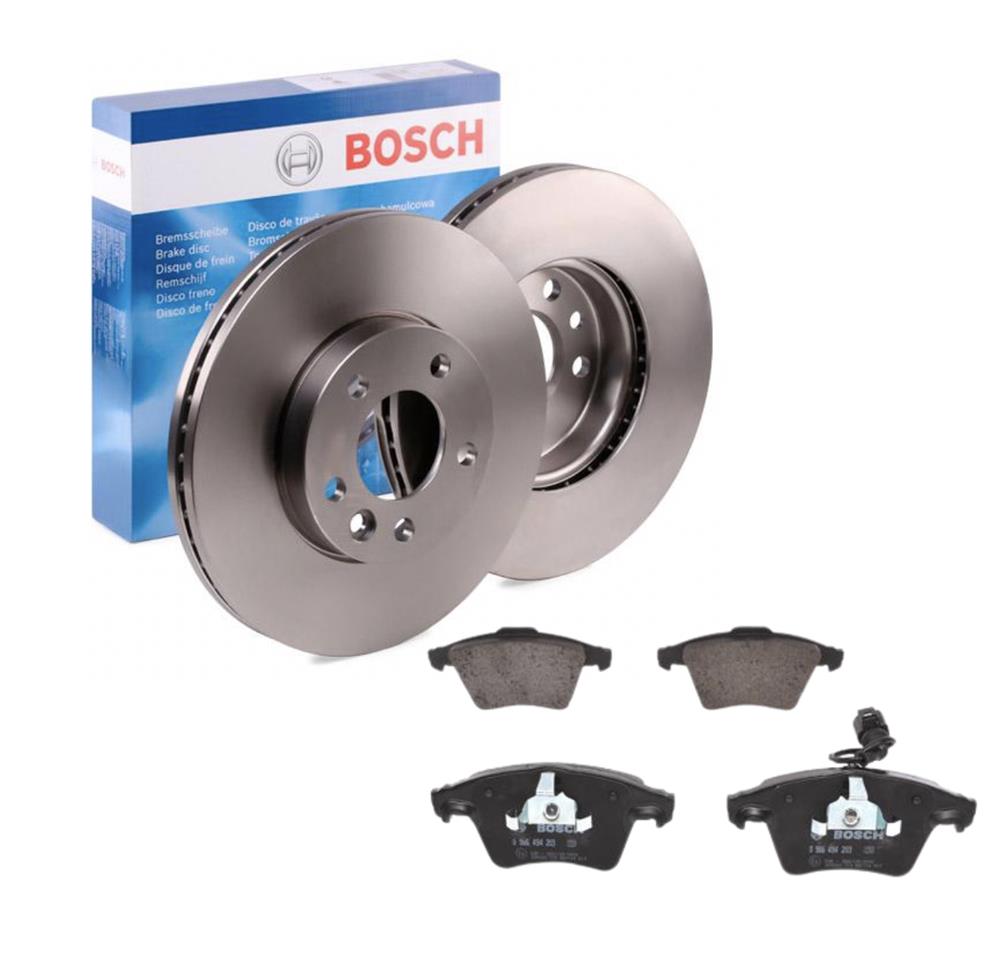

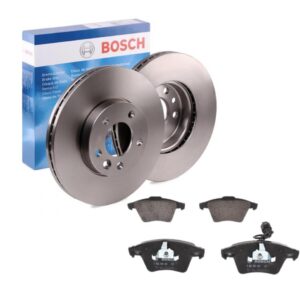

Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Bosch Front Brake Disc Rotor 308mm BD1078 | Bosch | 2 |
| Bosch Front Brake Pads BP1017 | Bosch | 1 |
Specifications

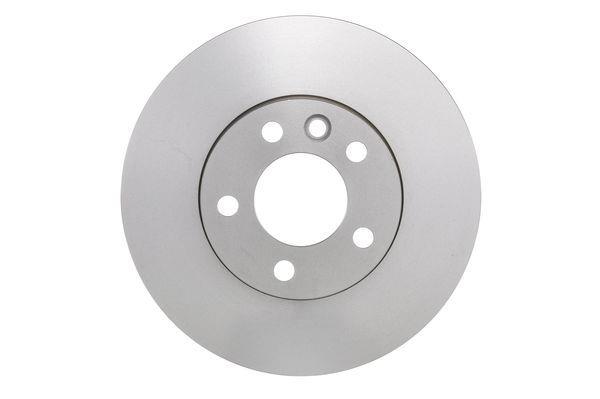

Bosch Front Brake Disc Rotor 308mm BD1078
| Height | 55.2mm, 55.5mm |
|---|---|
| Brake Disc Type | Vented |
| Brake Disc Thickness | 29.3mm, 29.5mm |
| Min. thickness | 25.5mm |
| Finish | High-carbon |
| Outer diameter | 308mm |
| Number of Holes | 5 |
| Centering Diameter | 76mm, 76.2mm |
| Pitch Circle Ø | 120mm |
| Surface | Oiled |
| Fulfils ECE norm. | ECE-R90 |
| Hole Ø up to | 16.6mm, 16.65mm |
| AUDI OE Numbers | 7E0615301D |
| VW OE Numbers | 7E0615301D, 7H0615301D |

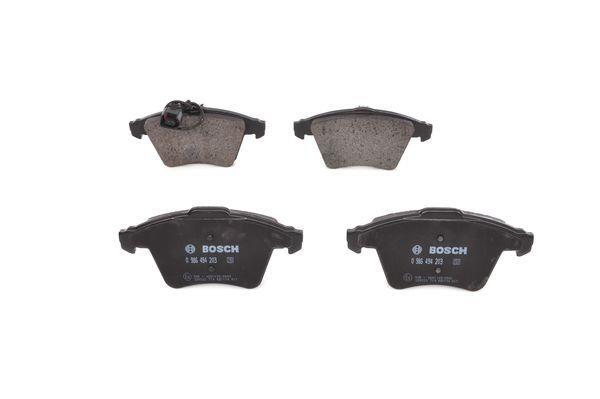

Bosch Front Brake Pads BP1017
| Thickness | 18mm |
|---|---|
| Test Mark | ECE R90 APPROVED |
| Number of wear indicators | 1per axle |
| Height 1 | 73mm |
| Height 2 | 75mm |
| Wear Warning Contact | Incl. wear warning contact |
| Supplementary Article/Supplementary Info | Photo corresponds to scope of supply |
| Brake System | ATE, Ate – Teves |
| Width 1 | 155mm, 155.2mm |
| Width 2 [mm] | 156mm, 156.4mm |
| Thickness 1 | 20mm |
| Thickness 2 | 18.5mm |
| VAG OE Numbers | 7H0698151, 7H0698151B, 7H0698151D, JZW698151Q |
