Brake Kits
Brake Disc Rotors, Pads & Sensor

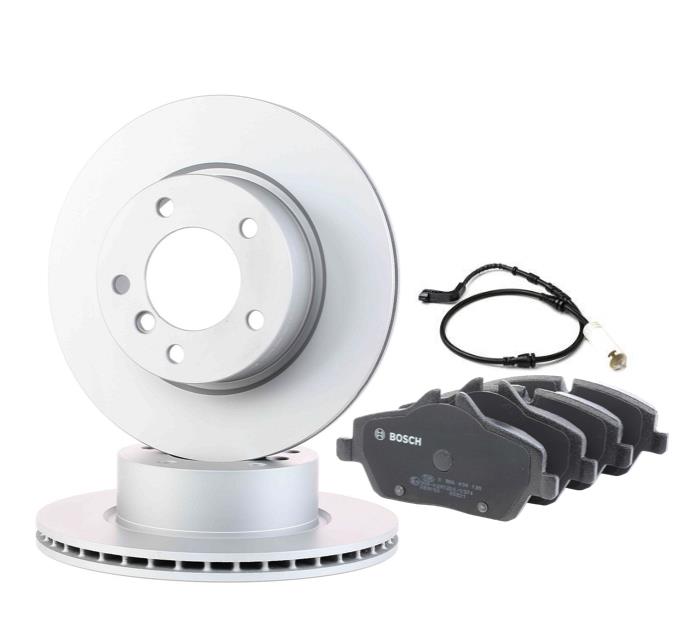

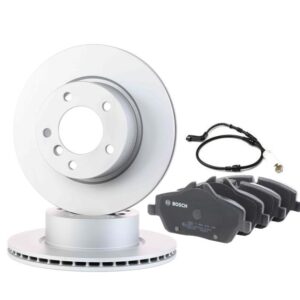

Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Bosch Front Brake Pads BP1030 | Bosch | 1 |
| Bosch Front Brake Pad Wear Sensor AP317 | Bosch | 1 |
| Bosch Front Brake Disc Rotor 292mm BD1082 | Bosch | 2 |
Specifications

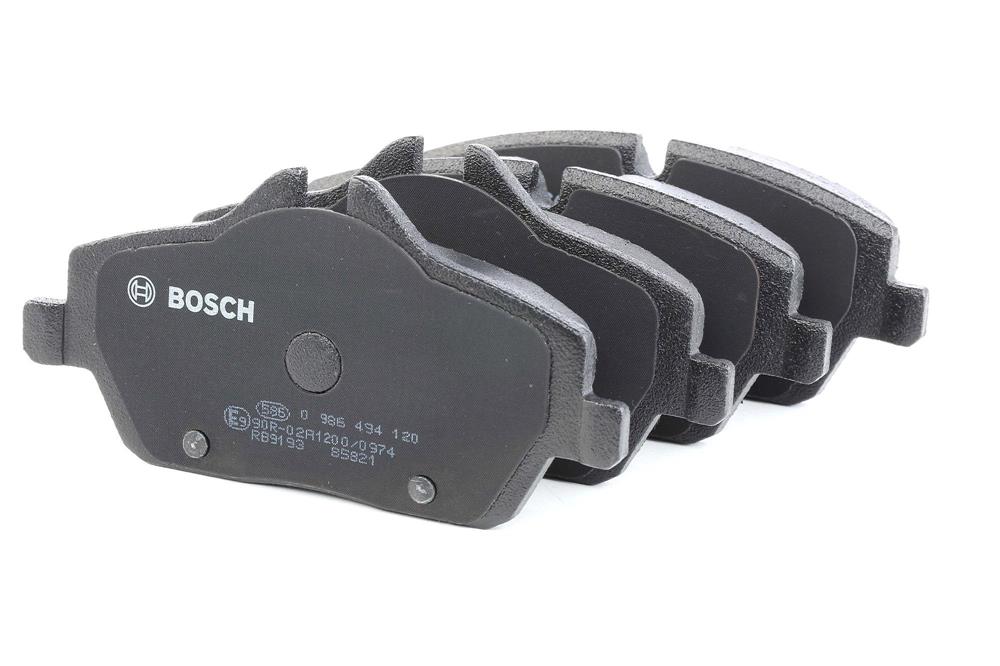

Bosch Front Brake Pads BP1030
| Thickness | 16.8mm |
|---|---|
| Test Mark | ECE-R90 |
| Width | 131.3mm |
| Height 1 | 65mm |
| Height 2 | 53.3mm |
| Material | Low-Metallic |
| Brake System | Lucas-Girling |
| Supplementary Article/Info 2 | with mounting manual, with anti-squeak plate |
| WVA Number | 23916 |
| BMW OE Numbers | 34106884263, 34112288854, 34112288855, 34116767143, 34116767144, 34116771837, 34116771838, 34116772892, 34116774050, 34116794056, 34116860016 |
| MINI OE Numbers | 34106863292, 34106884263, 34112288854 |

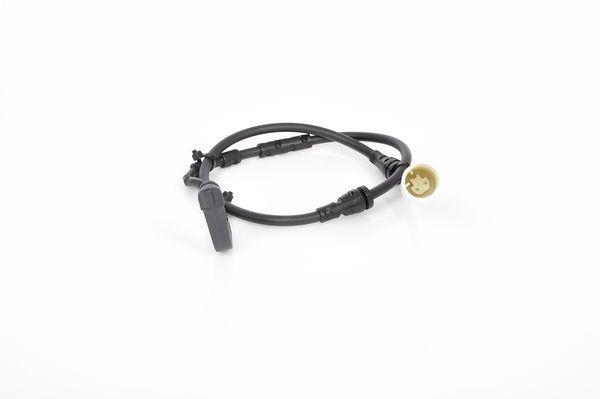

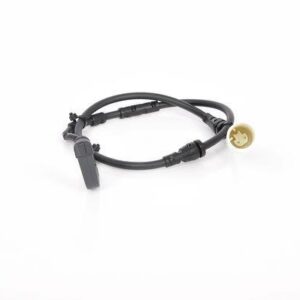

Bosch Front Brake Pad Wear Sensor AP317
| Length | 640mm |
|---|---|
| Brake Type | Disc Brake |
| BMW OE Numbers | 34356762252, 34356789439 |

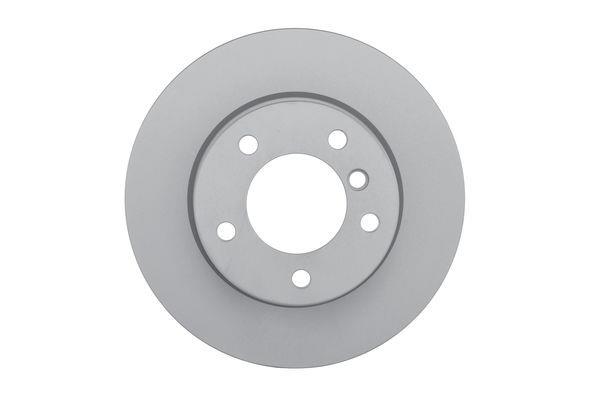

Bosch Front Brake Disc Rotor 292mm BD1082
| Height | 73.1mm |
|---|---|
| Brake Disc Type | Vented |
| Brake Disc Thickness | 22mm |
| Min. thickness | 20.4mm |
| Finish | High-carbon |
| Outer diameter | 292mm |
| Number of Holes | 5 |
| Centering Diameter | 79mm |
| Pitch Circle Ø | 120mm |
| Surface | Coated |
| Supplementary Article/Info 2 | with bolts/screws |
| Fulfils ECE norm. | ECE-R90 |
| Hole Ø up to | 14.3mm |
| BMW OE Numbers | 34116764641, 34116854997 |
