Brake Kits
Brake Disc Rotors, Pads & Sensors

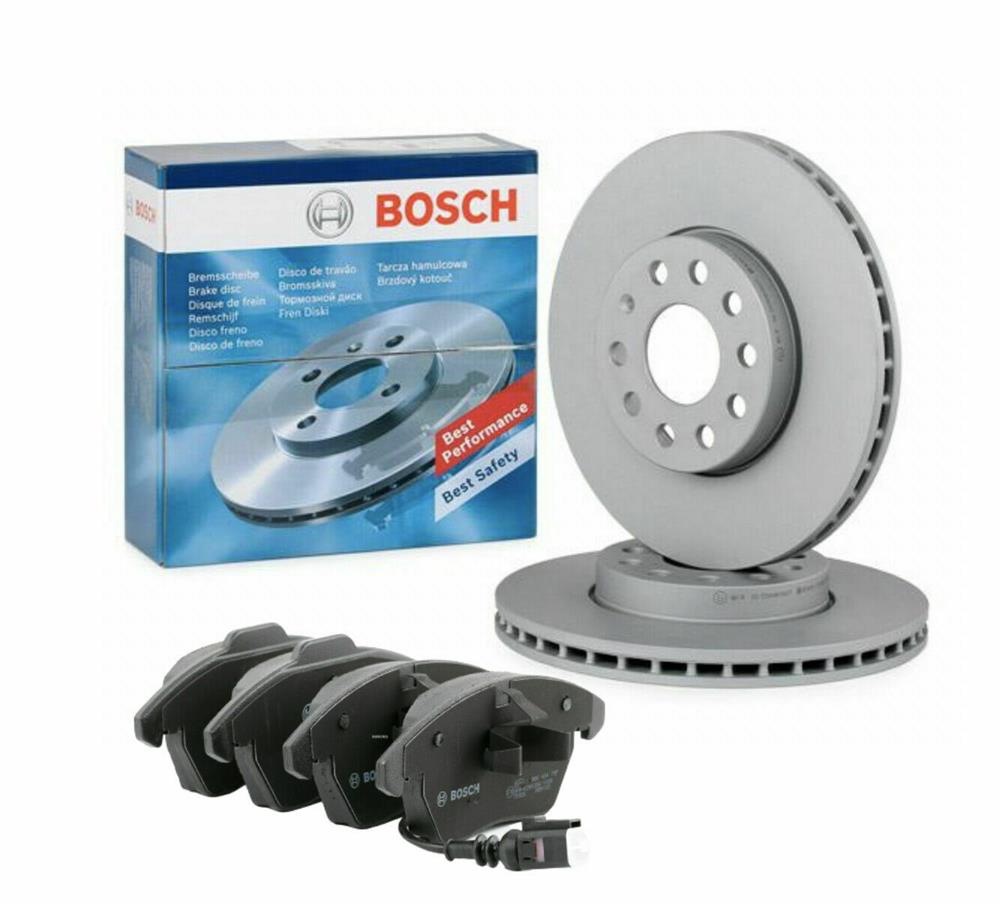

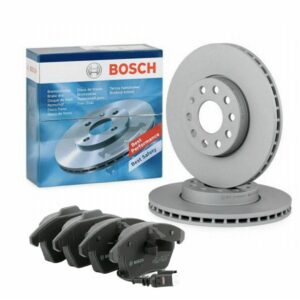

Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Bosch Front Brake Disc Rotor 288mm BD1023 | Bosch | 2 |
| Bosch Front Brake Pads BP938 | Bosch | 1 |
Specifications

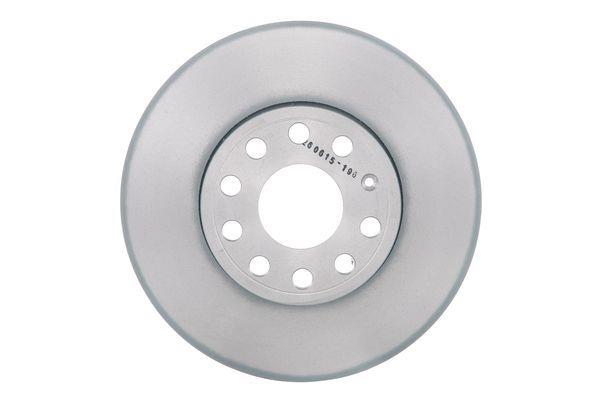

Bosch Front Brake Disc Rotor 288mm BD1023
| Height | 49.7mm |
|---|---|
| Weight | 7.3kg |
| Brake Disc Type | Internally Vented |
| Brake Disc Thickness | 24.9mm |
| Min. thickness | 22mm |
| Hole Arrangement / Number | 05/10 |
| Outer diameter | 288mm |
| Centering Diameter | 65mm |
| Pitch Circle Ø | 112mm |
| Surface | Coated |
| Supplementary Article/Info 2 | without wheel hub, without wheel studs |
| AUDI OE Numbers | 1K0615301K, 1K0615301T, 5C0615301A, 5C0615301D, 5Q0615301H, JZW615301J |
| FORD OE Numbers | 2631430, VWN3CA1125AA |
| SKODA OE Numbers | 1K0615301K, 1K0615301T, 5C0615301A, 5C0615301D, 5Q0615301H, JZW615301J |
| VW OE Numbers | 1K0615301K, 1K0615301T, 1KD615301, 5C0615301A, 5C0615301D, 5Q0615301H, 8E0098301T, 8P0698302A, JZW615301J, JZW698302BA, JZW698302CM |

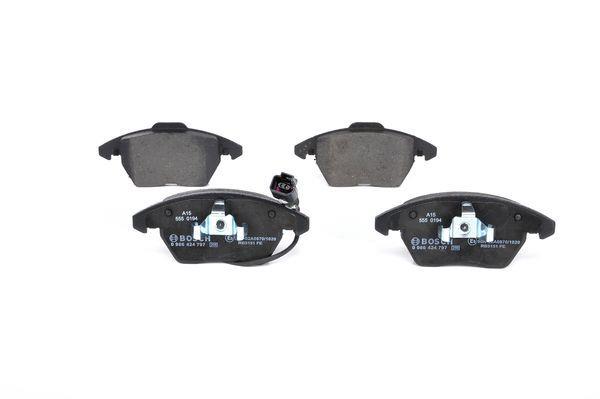

Bosch Front Brake Pads BP938
| Thickness | 20.4mm |
|---|---|
| Test Mark | ECE-R90 |
| Height | 66mm |
| Height 2 | 71.4mm |
| Material | Low-Metallic |
| Wear Warning Contact | with integrated wear sensor |
| Brake System | ATE |
| Width 1 | 155.2mm |
| Width 2 [mm] | 156.4mm |
| Supplementary Article/Info 2 | with mounting manual, with piston clip, with anti-squeak plate |
| Thickness 2 | 20.6mm |
| WVA Number | 23589 |
| Article number of recommended accessories | 1 987 474 432 |
| AUDI OE Numbers | 1K0698151, 1K0698151C, 1K0698151E, 3C0698151, 3C0698151A, 3C0698151B, 3C0698151C, 3C0698151D, 3C0698151J, 3C0698151K, 5C0698151A, 5K0698151, 8J0698151, 8J0698151C, JZW698151B |
| SKODA OE Numbers | 1K0698151, 1K0698151C, 1K0698151E, 3C0698151, 3C0698151A, 3C0698151B, 3C0698151C, 3C0698151D, 3C0698151J, 3C0698151K, 5C0698151A, 5K0698151, 8J0698151, 8J0698151C, JZW698151B |
| VW OE Numbers | 1K0698151, 1K0698151C, 1K0698151E, 3C0698151, 3C0698151A, 3C0698151B, 3C0698151C, 3C0698151D, 3C0698151J, 3C0698151K, 5C0698151A, 5K0698151, 8J0698151, 8J0698151C, JZW698151B |
