Brake Kits
Brake Disc Rotors, Pads & Sensor

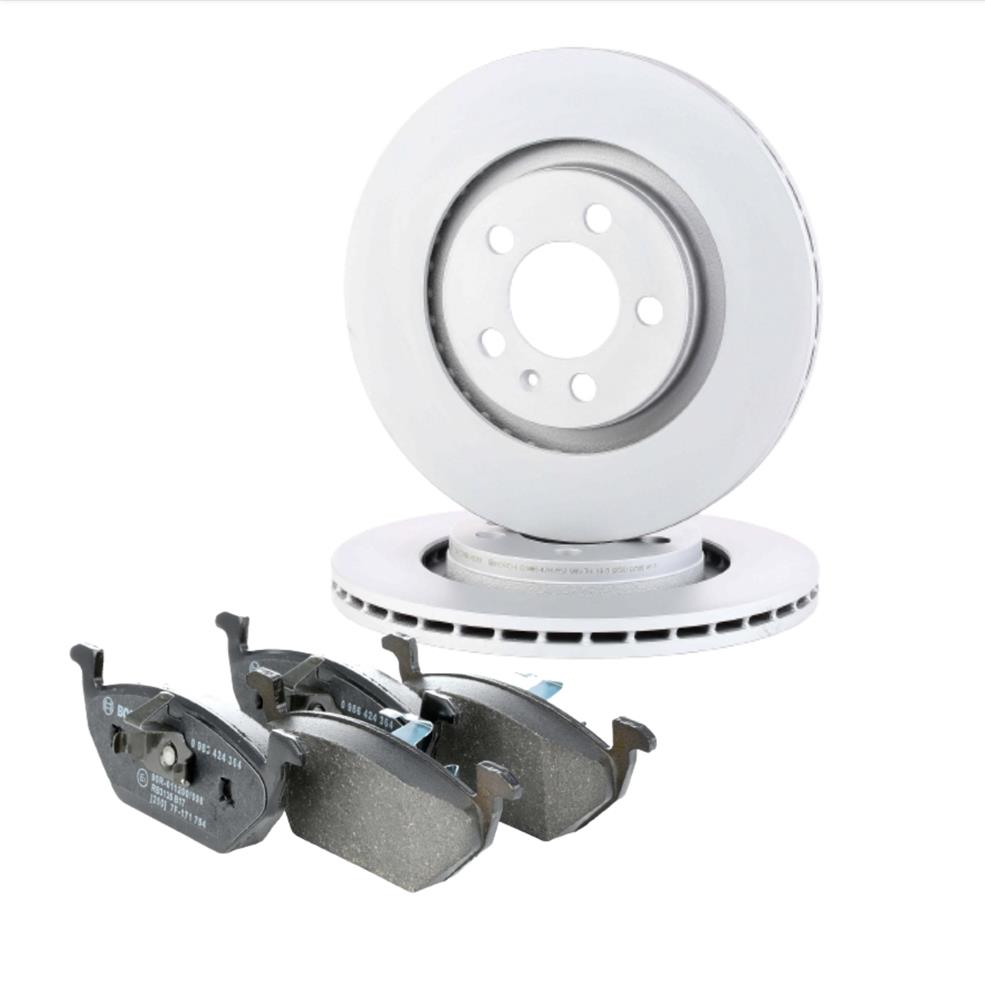

Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Bosch Front Brake Disc Rotor 280mm BD752 | Bosch | 2 |
| Bosch Front Brake Pads BP175 | Bosch | 1 |
Specifications

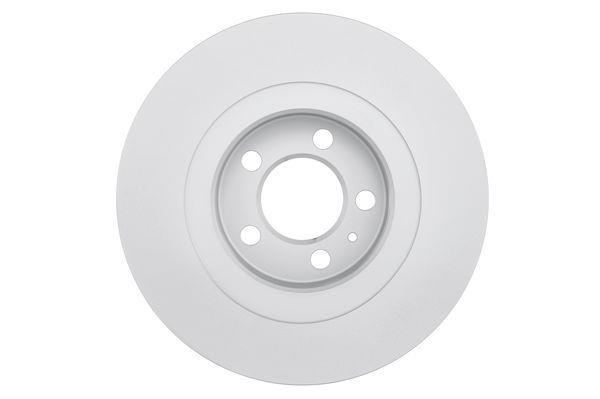

Bosch Front Brake Disc Rotor 280mm BD752
| Height | 36.6mm |
|---|---|
| Brake Disc Type | Internally Vented, Vented |
| Brake Disc Thickness | 22mm |
| Min. thickness | 19mm |
| Finish | High-carbon |
| Outer diameter | 279.7mm |
| Number of Holes | 5 |
| Centering Diameter | 65mm |
| Pitch Circle Ø | 100mm |
| Surface | Coated |
| Supplementary Article/Info 2 | with bolts/screws |
| Fulfils ECE norm. | ECE-R90 |
| Hole Ø up to | 15.7mm |
| AUDI OE Numbers | 1J0615301E, 1J0615301M, 1J0615301P |
| SKODA OE Numbers | 1J0615301E, 1J0615301M |
| VW OE Numbers | 1J0615301E, 1J0615301M, 1J0615301P, 1JD615301 |

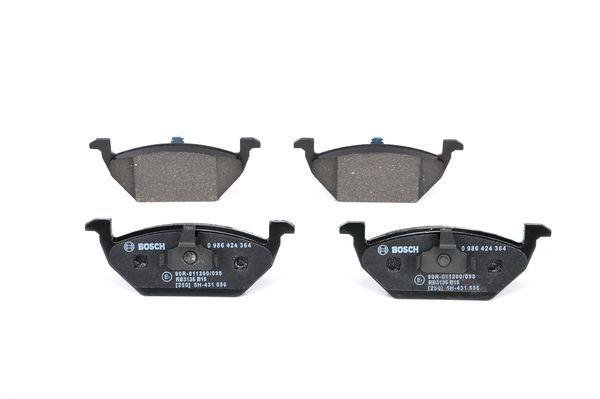

Bosch Front Brake Pads BP175
| Thickness | 18.7mm |
|---|---|
| Test Mark | ECE-R90 |
| Width | 146mm |
| Height | 54.6mm |
| Material | Low-Metallic |
| Brake System | ATE |
| Supplementary Article/Info 2 | with piston clip, with anti-squeak plate |
| WVA Number | 23130 |
| Article number of recommended accessories | SELECTIVE |
| AUDI OE Numbers | 1J0615115, 1J0698151, 1J0698151A, 1J0698151B, 1J0698151C, 1J0698151H, 1J0698151J, 1JE698151B, 1S0698151, 1S0698151A, 1S0698151B, 1S0698151C, 5C0698151, 5C0698151A, 5Z0698151A, 6C0698151, 6C0698151B, 6Q0698151, 6QD698151, 6R0698151A, JZW698151A, JZW698151AF |
| SKODA OE Numbers | 1J0615115, 1J0698151, 1J0698151A, 1J0698151B, 1J0698151C, 1J0698151H, 1J0698151J, 1JE698151B, 1S0698151, 1S0698151A, 1S0698151B, 1S0698151C, 5C0698151, 5C0698151A, 5Z0698151A, 6C0698151, 6C0698151B, 6Q0698151, 6QD698151, 6R0698151A, JZW698151A, JZW698151AF |
| VW OE Numbers | 1J0615115, 1J0698151, 1J0698151A, 1J0698151B, 1J0698151C, 1J0698151H, 1J0698151J, 1JE698151, 1JE698151B, 1S0698151, 1S0698151A, 1S0698151B, 1S0698151C, 2Q0698151, 2Q0698151A, 5C0698151, 5C0698151A, 5Z0698151A, 5Z0698151B, 6C0698151, 6C0698151A, 6C0698151B, 6C0698151C, 6Q0698151, 6QD698151, 6R0698151, 6R0698151A, 6RD698151A, JZW698151A, JZW698151AF |
