Brake Kits
Brake Disc Rotors & Pads

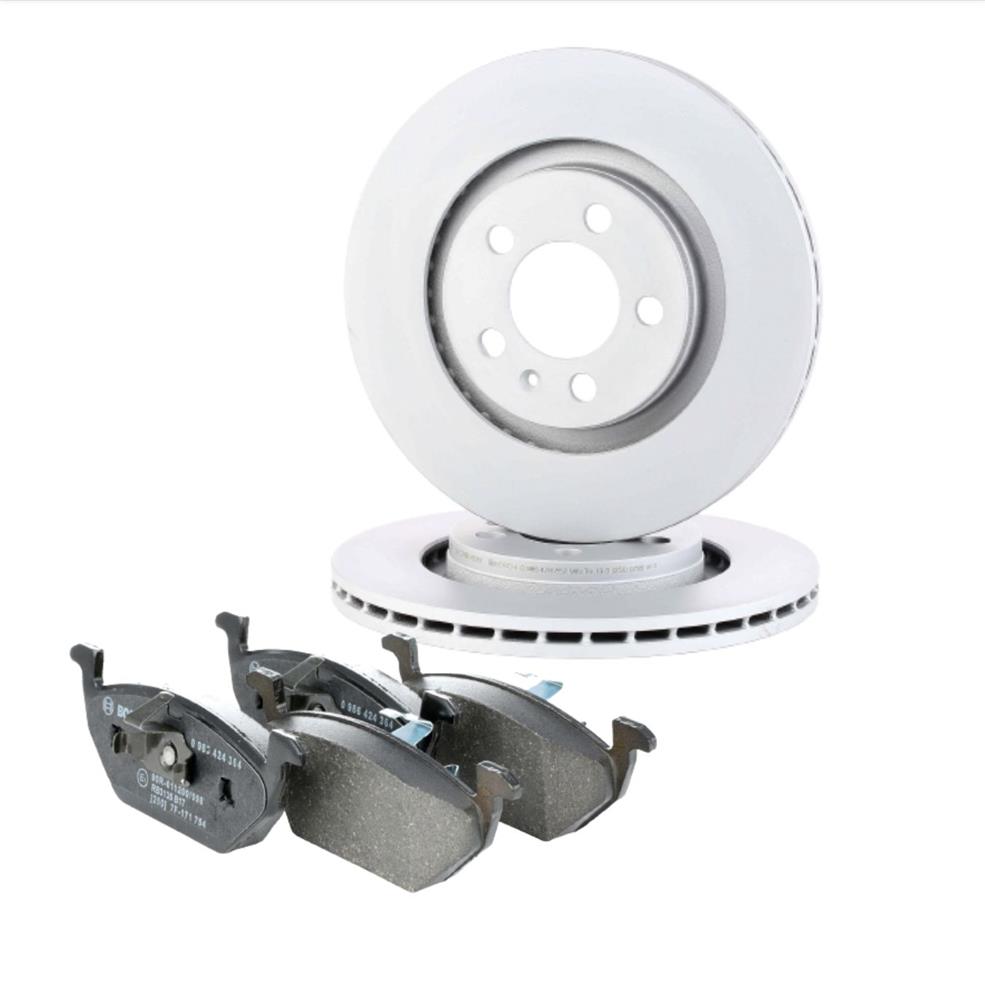

Kit Contains
| Description | Brand | Qty |
|---|---|---|
| Bosch Front Brake Disc Rotor 256mm BD753 | Bosch | 2 |
| Bosch Front Brake Pads DB1387BL | Bosch | 1 |
Specifications

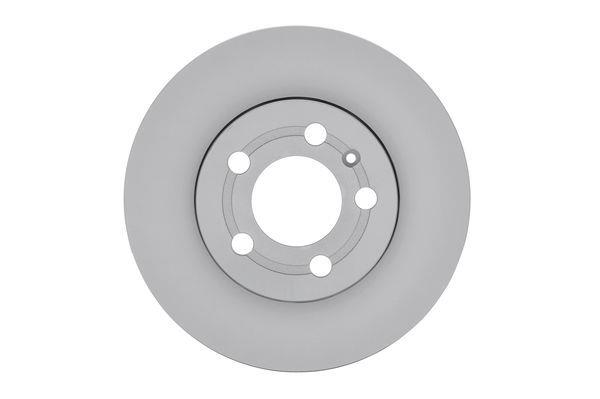

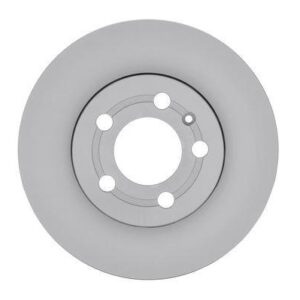

Bosch Front Brake Disc Rotor 256mm BD753
| Height | 36.7mm |
|---|---|
| Brake Disc Type | Vented |
| Brake Disc Thickness | 22mm |
| Min. thickness | 19mm |
| Finish | High-carbon |
| Outer diameter | 255.8mm, 256mm |
| Number of Holes | 5 |
| Centering Diameter | 65mm |
| Pitch Circle Ø | 100mm |
| Surface | Coated |
| Supplementary Article/Info 2 | with bolts/screws |
| Fulfils ECE norm. | ECE-R90 |
| Hole Ø up to | 15.7mm |
| AUDI OE Numbers | 1J0615301L, 6QD615301, 6R0615301, 6R0615301C, 8Z0615301B |
| SKODA OE Numbers | 1J0615301D, 1J0615301L, 6QD615301, 6R0615301, 6R0615301C, 6RD615301, 8Z0615301B |
| VW OE Numbers | 1J0615301D, 1J0615301L, 1JE615301, 6QD615301, 6R0615301, 6R0615301C, 6RD615301, 6RF615301A, 8Z0615301B |

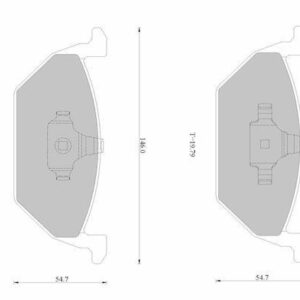

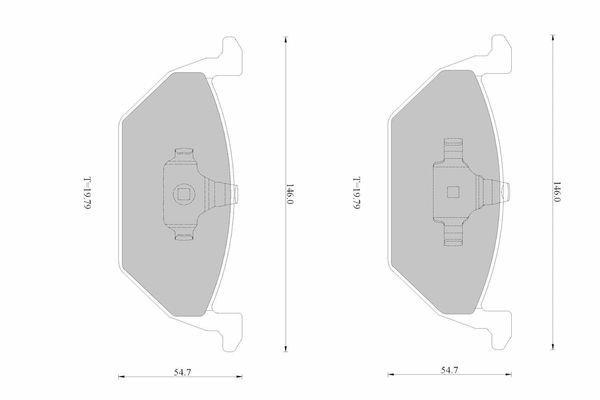

Bosch Front Brake Pads DB1387BL
| Thickness | 19.7mm |
|---|---|
| Width | 146mm |
| Height | 54.6mm, 54.7mm |
| Weight | 1.5kg |
| Wear Warning Contact | Excl. wear warning contact, Not prepared for wear indicator |
| Brake System | Teves |
| WVA Number | 23130 |
| AUDI OE Numbers | 1J0615115, 1J0698151, 1J0698151A, 1J0698151B, 1J0698151C, 1J0698151H, 1J0698151J, 1JE698151B, 1KD698151, 1S0698151, 1S0698151A, 1S0698151B, 1S0698151C, 2Q0698151T, 5C0698151, 5C0698151A, 5Z0698151A, 5Z0698151B, 6C0698151, 6C0698151A, 6C0698151B, 6C0698151C, 6Q0698151, 6R0698151A, 6R0698151B, 6RD698151A, JZW698151A, JZW698151AF |
| SKODA OE Numbers | 1J0698151, 1J0698151A, 1J0698151B, 1J0698151C, 1J0698151H, 1J0698151J, 1JE698151B, 1KD698151, 1S0698151, 1S0698151A, 1S0698151B, 1S0698151C, 2Q0698151T, 5C0698151, 5C0698151A, 5Z0698151A, 5Z0698151B, 6C0698151, 6C0698151A, 6C0698151B, 6C0698151C, 6C0698151D, 6Q0698151, 6R0698151A, 6R0698151B, 6RD698151A, JZW698151A, JZW698151AF, JZW698302CJ |
| VW OE Numbers | 1J0698151, 1J0698151A, 1J0698151B, 1J0698151C, 1J0698151H, 1J0698151J, 1JE698151, 1JE698151B, 1KD698151, 1S0698151, 1S0698151A, 1S0698151B, 1S0698151C, 1S0698151E, 2Q0698151A, 2Q0698151T, 2QB698151, 5C0698151, 5C0698151A, 5C0698151B, 5Z0698151A, 5Z0698151B, 6C0698151, 6C0698151A, 6C0698151B, 6C0698151C, 6Q0698151, 6R0698151A, 6R0698151B, 6RD698151A, JZW698151A, JZW698151AF, JZW698302CD |
